RIKON Carbide 4-Edge Helical Cutter Inserts for Planer Jointers Pack 10 - 25-699

Replace the inaccurate stock height gauge on your portable planer and stop constantly using calipers to check stock thickness! Most digital calipers only read out in decimal measurements, forcing you to do the mental math to convert to fractions. If your stock is measuring .575" and you need 9/16", how much do you need to remove with your next pass through the planer? With the Digital Planer Height Gauge simply lower your planer until the gauge reads .565 - 9/16. It can't get any easier! A unique gauge reads out both decimal and fractional measurements. Fits most portable "lunch box" style planers. Easy to follow installation instructions. Features: Fits most portable "lunch box" style planers Precise measurements Replaces inaccurate stock height gauge Displays decimal and fractional inch measurements or millimeters Easy to follow instructions for installation and calibration Uses common AAA batteries Specifications: Measuring Length: 6" (155 mm) Resolution (Decimal): .005" Resolution (Fraction): 1/32" Resolution (Metric): .1 mm Accuracy (Decimal): +/- .0025" Accuracy (Fraction): +/- 1/500" Accuracy (Metric): +/- .05 mm Battery: 2 AAA (not included) Functions: Constant memory retains calibration even when OFF; incremental measuring mode; absolute measuring mode; millimeter, inch and fraction readout; auto shut off What's Included: (1) Wixey - WR510 - Planer Digital Readout - Height Gauge

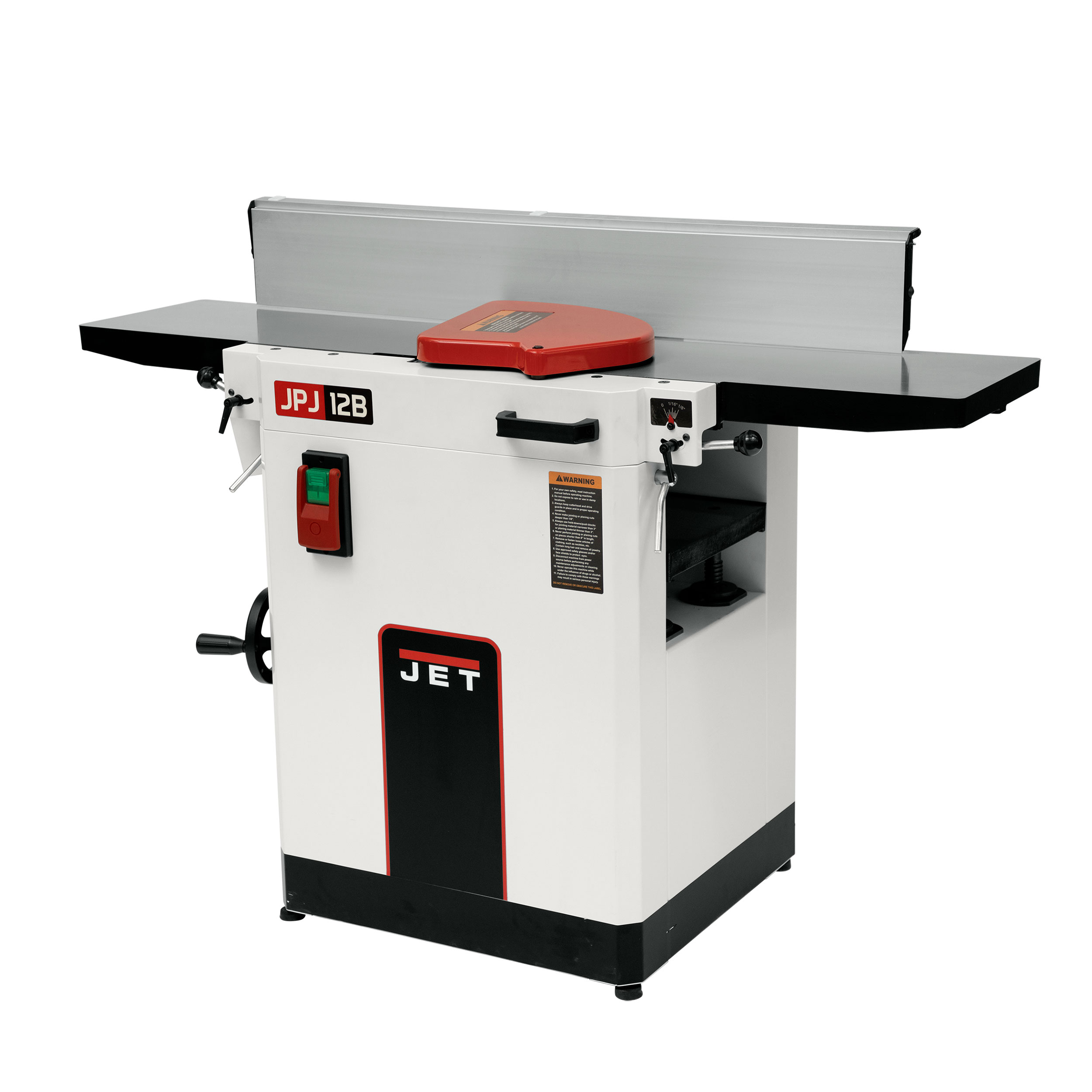

Jet presents the best of both worlds in planing and jointing boards with the JPJ-12B Planer/Jointer. Jet designed a machine that allows quick changeover between jointing and planing functions. This versatile machine features an extra-large aluminum extruded fence with centered controls for quick adjustments, a built-in dust chute capable of handling both planing and jointing operations, and a powerful 3-horsepower motor that can handle the toughest lumber. A heavy-duty, fully welded steel base cabinet houses the motor and the planer table mechanism while providing solid mounting for the associated controls and support for the jointer table and fence assemblies. Best of all, the fence can stay put when changing over functions. Features: Quick changeover between jointing and planing functions—fence does not need to be removed Three high-speed steel knife cutter head provides rapid cutting and a superior finish Parallelogram design keeps the table close to the cutter head for improved finish and allows for precise depth of cut adjustments Heavy-duty cast iron tables with a ground finish to ensure accuracy and flatness Large handwheel for quick and precise adjustments of planer table Heavy-duty, one-piece steel closed stand includes mounting tabs for increased stability Specifications: Type: Straight Knife Cutterhead Style: Floor Standing Model Motor Type: TEFC - Totally Enclosed, Fan-Cooled Motor Power: 3 HP Motor Phase: 1 Ph (single phase) Motor Voltage:230V only Full Load Amps: 15A Running Amps: 4.5A Cycle: 60 Hz Recommended Circuit Size: 30 Amps Knives: 3 Standard Knife Size: 12-3/16" x 11/16" x 1/8" Cutterhead Diameter: 2-3/4" Cutter Head Speed: 5300 RPM Jointer Table Size: 55" x 12-1/32" Table Height from Floor: 33-1/2" Fence Size (L x H): 43-1/4" x 5-7/8" Fence Tilt: 90deg to 45deg R Fence Positive Stops (degrees): 90deg and 45deg R Fence Travel: 6" Planer Table Size (L x W): 25" x 12-1/32" Planing Maximum Workpiece Thickness: 8-3/4" Planer Maximum Depth of Cut: 5/32" Planing Minimum Length of Workpiece: 10" Table Movement Per One Handwheel Revolution: 5/32" Feed Rate: 2 speed 16 to 26 FPM Dust Port: 4" Dust Collection Minimum CFM Required: 550 Overall Dimensions (L x W x H): 55-7/16" x 28-15/16" x 40" Stand Footprint (L x W): 24" x 21-1/4" Net Weight: 453 lbs. What's Included: (1) JetJPJ-12B 12"Planer/Jointer (2) Push Blocks (1) 6mm Hex Wrench (1) Aluminum Knife Gauge (1) Owners manual (1) Warranty Card Notes: Jointer-Planer is rated at 230V. This machine is not supplied with a plug. Use a plug and outlet rated at least 30 amps. The circuit for the machine should also be protected by at least a 30 amp circuit breaker or fuse.

This heavy duty planer offers performance and value, loaded with standard features not found on other machines in its class. The powerful 5HP motor and 20" planing capacity will handle the most demanding work. The helical cutterhead provides quieter operation and finer finishing than conventional systems, and the four-sided knife inserts seat themselves without requiring a set-up gauge. The 5" dust port connects easily to any dust collector. The anti-kickback fingers and pressure bar are located in close proximity to the cutterhead for an exceptional finish. The solid cast iron base, table and head are designed for production. The 2-speed oil bath gearbox transmits full power to feed rollers and facilitates fast speed changes at 24 and 31 FPM. The gearbox can be changed to 4-speed with the included gear to run lower speeds of 16 and 20 FPM. The corrugated infeed and fine groove outfeed rollers ensure a smooth feed. The precision ground and polished cast iron table rides on four steel columns giving it plenty of support for the larger workpiece. Heavy cast iron extension wings ensure a flat, smooth cut.Features:5HP motor and 20" planing capacity for heavy duty workFully enclosed base cabinet with integrated casters for shop mobilityCast iron table with extensions creates a big 55-1/2" x 20" working areaFour feed speeds - 24 and 31 FPM, 16 and 20 FPM with gear change - provide versatilityFeed rollers and cutterhead supported by full cast iron head assembly for rigidity5" diameter dust portCast iron extension tablesSpecificationsAmps : 21 Dust Collection Minimum CFM Required : 900 Dust Port Diameter (OD/in) : 5 Feed Rate (FPM) : 24 and 31 (16 and 20 with gear change) Height (in) : 41.375 Length (in) : 26 Maximum Depth of Cut (in) : 3/32 Maximum Planing Thickness (in) : 8 Maximum Planing Width (in) : 20 Minimum Planing Length (in) : 6-3/4 Net Weight : 800 lbNumber of Speeds : 4 Overall Dimensions : 26 x 36-5/8 x 41-3/8 Readout Scale : in/mm Rotation (Forward/Reverse) : Fwd Table Size (in) : 20 x 55-1/2 Table Support : 4 column Width (in) : 36.625Shipping weight 890 lb.
