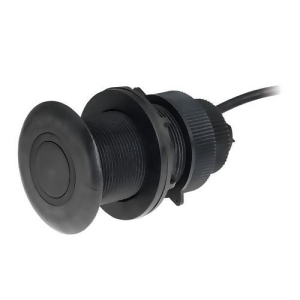

Airmar Dt820pv-235-n2 Dt800 Nmea 2000 20 deg Thru-Hull Tilted Element Smart Sensor - All
Product information for Airmar Dt820pv-235-n2 Dt800 Nmea 2000 20 deg Thru-Hull Tilted Element Smart Sensor - All
FeaturesLow-profile, retractable, thru-hull transducer offers depth and temperature functions in a single, compact housingTilted Element Transducer unique design tilts ceramic element inside transducer housing, giving all the advantages of a fairing block without a hull protrusionFixed 0 deg, 12 deg or 20 deg tilt perfect for power and sail boat applicationsLow-profile housing compensates for hull deadrise, does not affect hull performance and provides accurate readings at high speedsDesigned with Airmar's exclusive Broadband Ceramic Technology, 235 kHz element improves resolution without sacrificing sensitivitySmart Sensor with embedded microelectronics transducer element and signal processor are only millimeters apart235 kHz frequency prevents mutual interference with other echo sounders on vesselRetractable housing with self-closing valve minimizes water flow into the vessel when transducer is removed for servicingSpecificationsHousing Material: PlasticAcoustic Window Material: UrethaneMount: Thru-hullFixed Element Tilt Angle: 20 degConnector: 5-pin NMEA 2000Cable Length: 20'Frequency: 235 kHzCone: 12 degPower: 100 Watts RMSDepth Sensor Range: 1.6 - 594'Hole Diameter for Installation: 2 Size: 4.92 x 2.94 Weight: 2.3 lbs
