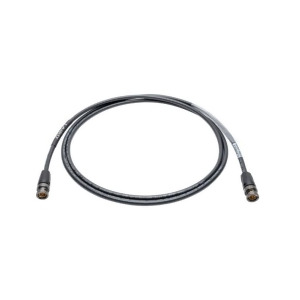

Laird Digital Cinema Rtbnc-4505-050 50 ft. 4K Uhd Cable with Neutrik Rear Twist Bnc Connectors & Belden Rg59 Cable - All
Product information for Laird Digital Cinema Rtbnc-4505-050 50 ft. 4K Uhd Cable with Neutrik Rear Twist Bnc Connectors & Belden Rg59 Cable - All
4K UHD Cable with Neutrik Rear Twist UHD BNC Connectors & Belden RG59 Cable The Laird RTBNC-4505 Series assemblies, with Neutrik's rear TWIST UHD BNC connectors and Belden 4805R RG59 cable, are built for 12G-SDI/4K extended bandwidth applications. The rear twist technology simplifies insertion and removal of recessed BNC panel connectors and allows for easy patch bay interface. No special BNC removal tool is required; simply use the rear boot twist. Belden's premium low loss 4505R coax is rated for 12G-SDI runs up to 150 feet. The cable's braid design, silver-plated copper conductor, and a polyethylene formula are all design features that contribute to significant RL improvement and an 8 dB improvement on cable attenuation compared to existing coaxes. Fully compatible with SMPTE ST-2082-1 and ST-2081-1 standards. Laird Certifies this cable to work at a Max Transmission Distance of 150 Feet for 12G-SDI even though Belden may show this distance as 208 Feet. To meet the Laird max transmission standard, signal integrity must remain 100% functional without any CRC errors. Your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues; however, when CRC errors are present there could be drops in audio, video, meta, and ancillary data. In most circumstances, video integrity remains intact at OEM distance. Features12G-SDI Maximum DistanceNeutrik rear TWIST UHD BNC designed for UHD-data TransmissionsFully compatible with conventional BNC Chassis connectorsSwiss Antraloy platingUL1666 compliant and CMR compliantIndoor-Riser RatedSpecificationsSize: 50 ft.Suitable applications: SMPTE 3G, SMPTE 6G, SMPTE 12GCable Type: RG59/UAWG: 20Stranding: SolidNumber of Coax: 1Conductor Material: Silvered Copper SC Conductor Diameter: 0.032 0.812mm Outer Jacket Material: Polyvinyl Chloride PVC Overall Nom Diameter: 0.233 5.918mm Insulation: Gas-Injected Polyethylene PE Outer Shield Layer 1 Type: Bonded Duofoil Tape Outer Shield Layer 1 Material: Tri-Laminate Alum+Poly+Alum Foil 100% coverageOuter Shield Layer 2 Type: BraidOuter Shield Layer 2 Material: Tinned Copper TC 95% CoverageNom Impedance: 75Nom Inductance: 0.107 µH/ft Nom Capacitance Conductor to Shield: 16.1pF/ft 52.8pF/m Nom Velocity of Propagation: 83%Nom Delay: 1.220 ns/ft Nom Conductor DC Resistance: 10.200 Ohm/1000ft Nom Outer Shield DC Resistance: 3.400 Ohm/1000ft Min Bend Radius: 2.3 58mm Min Pulling Tension: 52 lbs 23.58kg Max Operating Voltage: 300V RMSOperating Temperature: -4°F - 167°F -30°C - 75°C Connection Type: BNCWeight: 1.66 lbs
