Liberty Wire & Cable Lwc-22-2c-psh-we Audio & Control 22 Awg 1 Pair Shielded Plenum Reel, White - All
Product information for Liberty Wire & Cable Lwc-22-2c-psh-we Audio & Control 22 Awg 1 Pair Shielded Plenum Reel, White - All

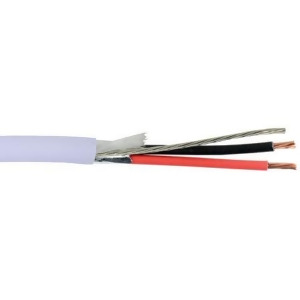

The Liberty Wire and Cable 22-2C-PSH-WHT is white 2 conductor, 22 AWG/1 PR shielded plenum rated audio and control cable. Suitable applications include Line Level, Microphone level audio runs under 100 feet, Balanced and unbalanced audio formats, Infrared IR , RS-232C signaling. FeaturesAudio & Control 22 AWG 1 Pair Shielded Plenum Reel7-strand annealed bare copper conductorsPlenum rated PVC alloy insulationTwisted, shielded with drain outPlenum rated PVC alloy jacketNEC CMP, CEC CMP FT6, RoHS compliant1000 foot spoolsSpecificationsColor: WhiteConductor: 22 Awg - 7-Strand Annealed Bare Copper ConductorsConductor Diameter: 0.029 Insulation: Plenum Rated Polyvinyl ChlorideInsulation Wall Thickness: 0.008 Insulation Diameter: 0.044 Assembly: 2 Conductors TwistedLay Length: 3 Construct: Ripcord Under JacketShield: 100% Aluminum/Polyester Tape Foil OutJacket: Plenum Rated Polyvinyl ChlorideWall Thickness: 0.014 Diameter: 0.118 Electrical DC Resistance: 16.4 / 1000'Mutual Capacitance: 39.7 Pf/FtImpedance: 47 ohmVelocity of Propagation: 55%Voltage Rating: 300VRegulatory: NEC CMP 75°CCEC: CMP FT6 60°CReel: 1000'Installation Pull Tension: 11 lbsBend Radius: 1.18 UnloadedWeight: 13 lbs
