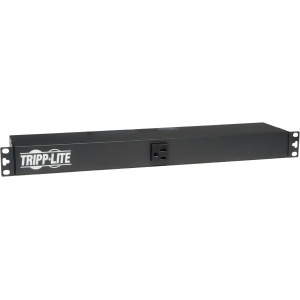

Tripp Lite Trl-pdu1226 Pdu Basic 13 Nema 5-15 & 20R Outlets 5-20P Input with 6 ft. Cord - 1Urm - All

Product information for Tripp Lite Trl-pdu1226 Pdu Basic 13 Nema 5-15 & 20R Outlets 5-20P Input with 6 ft. Cord - 1Urm - All

Up-to-Date Safety Features Protect Your Vital EquipmentThe switchless design helps prevent an accidental shutdown, which could lead to costly downtime. A 20A circuit breaker protects connected components from dangerous overloads. Single-Phase 120V PDU Distributes Network-Grade Power to Multiple LoadsThe Tripp Lite PDU1226 basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for high-density IT environments, the PDU1226 features a single breakered load bank with 13 NEMA 5-15/20R outlets - 12 in the rear and one in front. A 6-ft. 1.83 m cord with NEMA 5-20P input plug connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads. Versatile Installation Options Give You Plenty of ChoicesThe reversible all-metal housing comes with mounting brackets for installation in 1U or 0U of space in an EIA-standard 19-inch rack. You can also reorient the brackets for permanent mounting under a counter or on a wall with user-supplied hardware. Typical ApplicationsDeliver network-grade power to high-density equipment in networking, telecom, security, audio/video and sound reinforcement applications FeaturesIdeal no-frills PDU for telecom, security, audio/video and other network applications13 NEMA 5-15/20R outlets distribute AC power to connected equipmentSwitchless design helps prevent accidental shutdowns that can lead to costly downtime6-ft 183 m cord with NEMA 5-20P single-phase input connects to AC power sourceFlexible installation options include 1U and 0U rack, under counter and on wall5-year limited warrantySpecificationsPDU Input Voltage: 100; 120; 127Recommended Electrical Service: 20A 120VMaximum Input Amps: 20PDU Plug Type: NEMA 5-20PInput Phase: Single-PhaseInput Cord Length ft. : 6Frequency Compatibility: 50 / 60 HzOutput Receptacles: 13 5-15/20ROutput Nominal Voltage: 100; 120; 127Overload Protection: 20A circuit breakerSwitches: No power switchMaterial of Construction: MetalMinimum Required Rack Depth inches : 9.5Outlets Measurement Center to Center : 30.2mmPDU Form Factor: Horizontal 1U Unit Dimension hwd / in. : 1.75 x 17.5 x 4.5Unit Weight lbs. : 5.2Storage Temperature Range: -30degC to +50degC -22degF to +122degF Relative Humidity: 5 to 95% non-condensingOperating Elevation ft. : 0-10,000Operating Elevation m : 0-3000TVSS Grounding: Back panel grounding lugStandards & ComplianceWeight: 5.7 lbs
