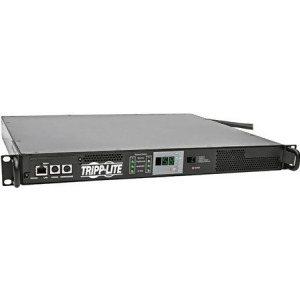

Tripp Lite Trl-pdumnh30hvat 5.8kW Single-Phase 208-240V ATS&Monitored Pdu L6-30r Outlet 2 L6-30p Inputs 1U Rackmount - All
Product information for Tripp Lite Trl-pdumnh30hvat 5.8kW Single-Phase 208-240V ATS&Monitored Pdu L6-30r Outlet 2 L6-30p Inputs 1U Rackmount - All
The PDUMNH30HVAT 5.8kW Single-Phase 208/240V ATS/Monitored PDU provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms, it mounts in 1U of space in EIA-standard 19-inch racks and features one L6-30R outlet-perfect for connecting a single device or a 0U 208/240V PDU with an L6-30P plug. Dual 10-foot input cords with L6-30P plugs connect to separate primary and secondary single-phase power sources. The PDU constantly evaluates the power quality of both input sources. Dynamic solid-state TRIAC automatic transfer switching allows the PDU to switch to the secondary source within 1-5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.Built-in Ethernet network interface allows remote access to the PDU for power monitoring, configuration, control and notifications via web browser, SSH, telnet or SNMP. Provides real-time load/current data with billing-grade accuracy +/- 1 percent . Tiered access privileges allow both an administrator and a guest to log in. Automated alerts help prevent accidental overloads, power loss and downtime. Digital display indicates power availability, voltage, source A/B input status, output load and power factor, as well as temperature and humidity conditions with the optional ENVIROSENSE module . Features5.8kW Single-Phase 208-240V ATS&Monitored PDU L6-30R Outlet 2 L6-30P Inputs 1U RackmountPrimary and Secondary Inputs for Power RedundancyProvides remote power monitoring and enables redundant power for network devicesDynamic solid-state TRIAC automatic transfer switchingSwitches to secondary power source if primary source fails or becomes unstable1-5 ms transfer time ensures uninterrupted operation of connected equipmentReal-time load/current data with billing-grade accuracy +/- 1 percent Tiered access privileges allow both an administrator and a guest to log inAutomated alerts help prevent accidental overloads, power loss and downtimeOptional ENVIROSENSE module monitors temperature and humidity10/100 Mbps auto-sensing allows optimal communication with 10/100 Base-T networksBroad Communications CompatibilityCompatible with EIA-standard 19 in. 4-post racks and rack enclosuresOptional PDU4PKIT rail kit adds rear mounting supportSpecificationsPDU Type: Monitored; Auto-Transfer SwitchOutput Capacity Details: 5.8kW 240V , 5.5kW 230V , 5.3kW 220V , 5.0kW 208V , 4.8kW 200V ; 30A maximum agency de-rated to 24A continuous Frequency Compatibility: 50 / 60 HzOutput Receptacles: 1 L6-30ROutput Nominal Voltage: 240, 230, 220, 208, 200PDU Input Voltage: 200; 208; 220; 230; 240Recommended Electrical Service: 30A 208V; 30A 240VMaximum Input Amps: 30Maximum Input Amps Details: Agency de-rated to 24A continuousInput Cord Length M : 3 Input Phase: Single-PhaseMinimum Required Rack Depth Inches : 17.5Weight: 15.37 lbs
