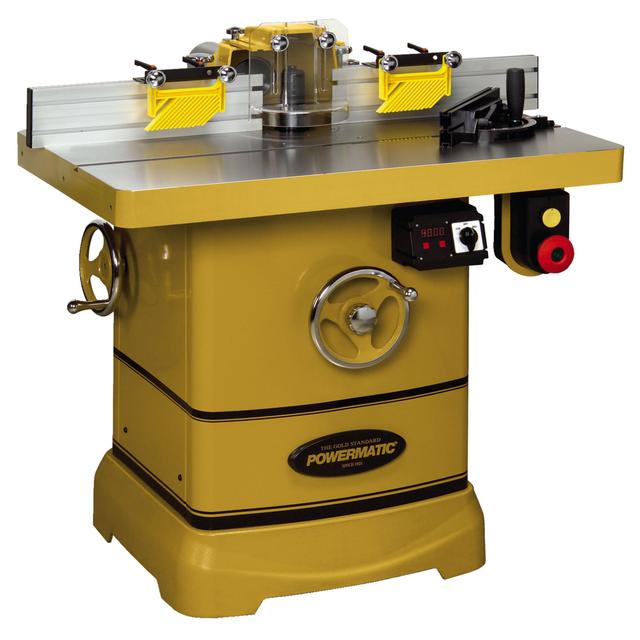

This new PM2700 Shaper offers more features to you than any other shaper in the same class. The extra large 30" x 40" precision ground cast iron table includes a heavy duty miter gauge with an aluminum extruded support. The built-in, omni-directional caster system (patent pending) is retractable into the base. A quick-release lever allows fast speed and belt changes. The extruded aluminum fence has several T-slots so you can mount a wood face to create a no-clearance surface around any shaper or router bit. The fence also gives you the ability to quickly move the fence close to its final position, lock it in and then use the precision micro adjustments on each side of the cutter to dial in exactly the position you need. Adding to the precision of this machine is a digital readout for the spindle height. This allows making adjustments to within .001" in the spindle height, which is critical when aligning rail and stile cutters for those raised panel doors.Features: Integrated caster system built into the cast iron base for instant shop mobilitySpindle height digital readout for making fine incremental adjustments on multiple passesHeavy duty 30" x 40" precision ground tabletop for smooth stock feedingConvenient quick lock belt tensioning for easy speed adjustmentIndustrial fence system with fine adjust dials for more precise positioning3HP totally enclosed motor offers plenty of powerTwo spindle speeds (reversible) for a variety of workSuperior clear cutter guard promotes safety, allows observation of the entire cutTable predrilled and tapped for feeder mounting in two locationsFence has dual featherboards for work holding4" port for attachment to dust collection system3/4" and 1-1/4" interchangeable spindle colletsSpindle height digital readoutFeatherboard hold downsDeluxe miter gaugeIntegrated caster systemSpecifications: Amps : 14Digital Readouts : spindle heightDust Collection Minimum CFM Required : 600Dust Port Diameter (OD/in) : 4 (dual ports)Electrical Controls - Magnetic Starter : magneticFence Size (L x H/in) : 18-3/4 x 4-7/8Height (in): 45Length (in): 40Motor HP : 3HPMotor Phase : 1PHMotor Voltage : 230VNet Weight : 664 poundOverall Dimensions : 40x37x45Part Number : 1280100CReversible : YesRouter Bit Collet Diameter (in) : 1/4 and 1/2 (optional)Spindle Diameter (in) : 3/4, 1-1/4Spindle Size Under Nut (in) : 3/4 spnd = 3-3/4, 1-1/4 spnd = 6Spindle Speed (RPM) : 7,500 & 10,000Spindle Travel (in) : 4Table Height From Floor (in) : 35-1/2Table Insert Opening Diameter (in) : 2.55, 4.16, 5.75Table Inserts : (3) 2.55", 4.16", 5.75" I.D.Table Opening Diameter (in) : 7-3/8Table Size (in) : 40 x 30Table T-Slot (in) : standardWidth (in): 37Shipping weight 698 lb.

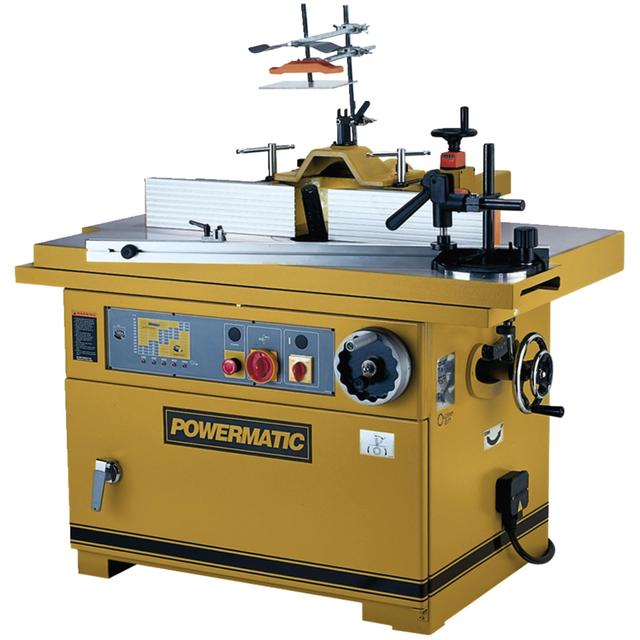

The new TS29 Tilt/Slide Shaper is ready to tackle any job. A new fence design includes dual digital readouts, micrometer adjustments and independently adjustable fence halves for fast, accurate set-ups. The full guard includes two stock hold-downs and a see-through cover that flips up for quick tool changes. Dual dust collection ports, in the guard and under the table insure a clear work area and improved finish. An extra large quill assembly with a full seven inch stroke has three oversize bearings and the ability to tilt, adding versatility and insuring long, trouble-free performance. Powered by a big 7-1/2HP motor that drives the spindle forward and reverse with five speeds. The massive sliding table is fully supported by six tapered precision bearings through a full four-foot stroke. In addition, on board the table is a large miter head complete with stock hold-down clamp and a 56" miter fence with flip stop. The large table can easily accommodate a stock feeder for longer production runs.Features:• Sliding table with 4-foot stroke works with miter head, hold-down and fence to accommodate everything from multiple end cuts to tenons• Fully adjustable fence with dual digital readout for fast, accurate set-up and repeatability• Large table with built-in slider with room for stock feeder• 7" vertical spindle travel allows stacked tooling• Spindle tilts negative 5° to positive 45° for increased versatility• Large diameter multiple table inserts accommodate virtually any size cutter• Five spindle speeds in forward and reverse with lighted indicatorSpecifications: Dust Collection Minimum CFM Required : 800Dust Port Diameter (OD/in.) : 5 (dual ports)Electrical Controls - Magnetic Starter : 24V MagneticFence Size (L x H/in.) : 46 x 5Fence Travel (Major and Minor/in.) : 5-3/8 and 3-5/8Height (in): 53Length (in): 51Maximum Diameter Cutter Above Table (in) : 12Maximum Diameter Cutter Below Table (in) : 9Motor HP : 7-1/2HPMotor Phase : 3PHMotor Voltage : 230/460VNet Weight (lb): 1,100Overall Dimensions : 51 x 44 x 53Part Number : 1791284Prewired : Prewired 230VReversible : YesRouter Bit Collet Diameter (in) : 1/4 and 1/2Slide Table Size (in) : 11-1/4 x 51-1/4Spindle Diameter (in) : 3/4, 1, and 1-1/4Spindle Size Under Nut (in) : 3/4 Spindle - 3-1/2, 1 Spindle - 6-1/4, 1-1/4 Spindle - 6-1/4Spindle Speed (RPM) : 3000, 4000, 6000, 8000, and 10,000Spindle Travel (in) : 7Table Inserts : one tilting, two straightTable Size (in) : 51-1/2 x 33-1/2Table Travel (in) : 49-1/4Tilting Spindle (deg.) : 5° back, 45° forwardWidth (in): 44Shipping weight 1,280 lb.
