Metra Active Line Output Converter with Driver, Car Audio Accessories | AX-LOC2-2-LD | P.C. Richard & Son

Product information for Metra Active Line Output Converter with Driver, Car Audio Accessories | AX-LOC2-2-LD | P.C. Richard & Son

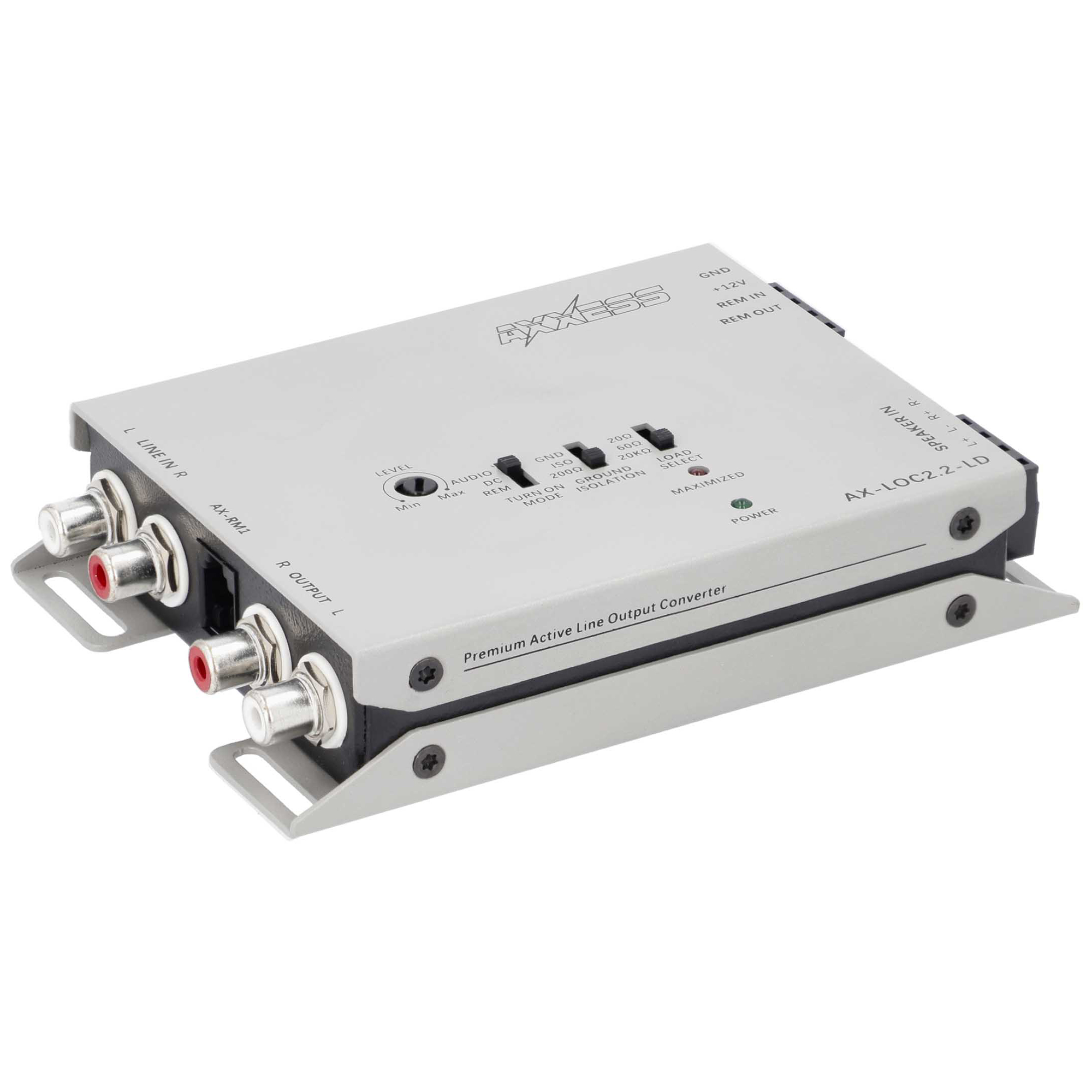

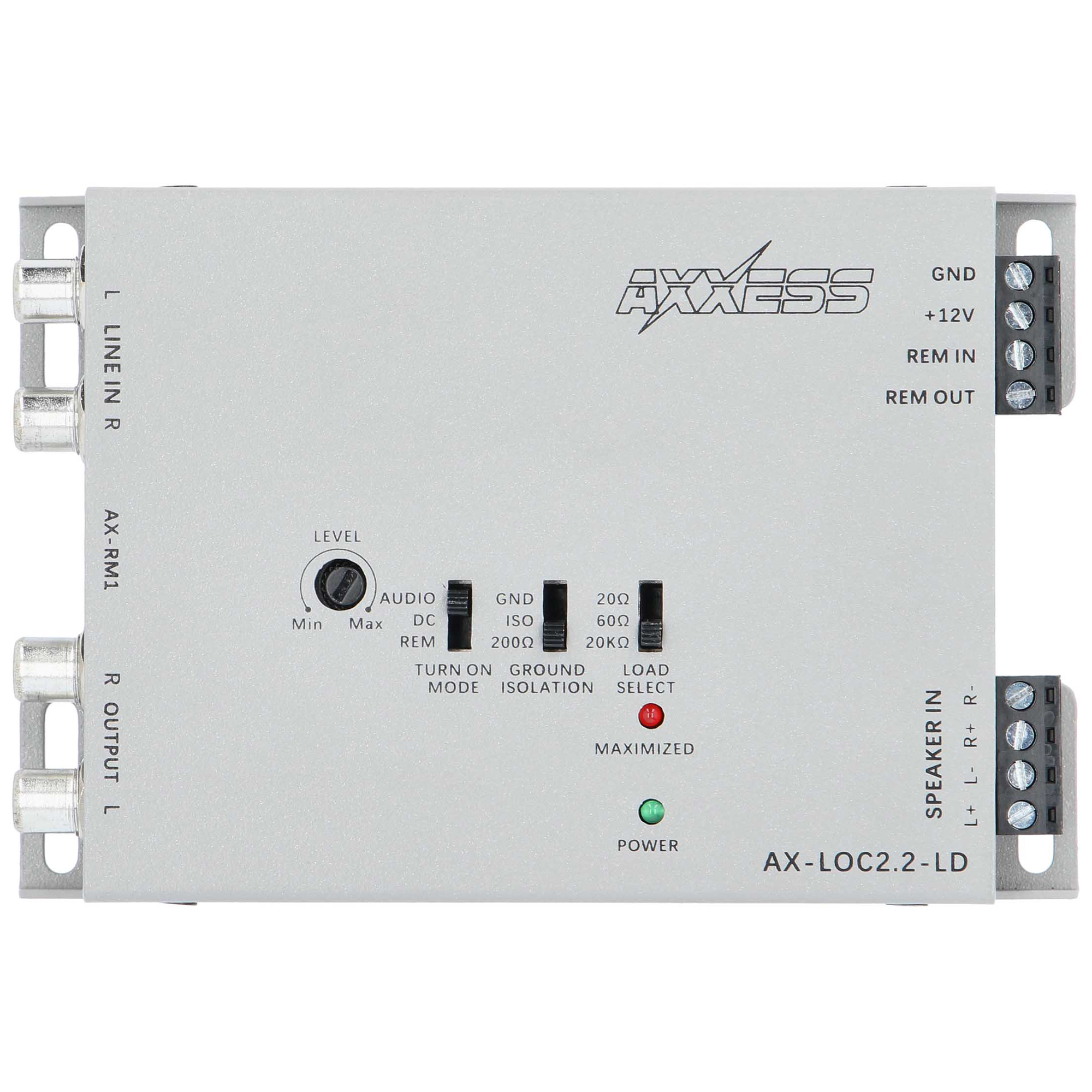

Metra Active Line Output Converter With Line Driver The Ax-Loc2.2-Ld Is A Line Output Converter And Line Driver All-In-One Package. This Unit Has Universal Applications And Enables Installers To Add Aftermarket Amplifiers To Oem Source Units Easily And Flawlessly. The Loc Features Incredible Input Power Capabilities, A Load Selector, Variable Gain Controls With Clipping Indicators, Enhanced Output Controls, Selectable Ground Isolation, And Noise Isolation Countermeasures. High-Level Inputs Mean You Can Tap Right Into Your Factory Speaker Wire For A Signal, And The Built-In Signal Sensing Turns The Unit On Without The Need To Find A Factory Accessory Lead. It Also Has The Option Of A Remote Turn-On Output To Control Your Amplifier. The Ax-Loc2.2-Ld Comes With A Convenient Feature - It Has Two Rca Low Level Inputs Built Into Its Design. These Come In Handy When The Sound Quality From A Source Unit Is Not Up To Par Due To A Weak Low-Level Signal. Features: 2-Channel: 2 In, 2 Out Line Driver With Low Level Input Max Input Level: 40V / 400W @ 20K Ohm Operating Voltage: 9V-16V Trigger Selection: Rem / Dc / Audio Remote Output Rating 500Ma Turn On Trigger (Dc): 3V-7V Output Max @13.8V: 9.5V Rms Input Impedance Selection: 20 / 60 / 20K Ohm Ground Selection: Gnd / Iso / 200 Ohm Gain Adjustment: - 28Db To +1Db Input Sensitivity: 0.5V-20V Signal To Noise: >110Db @ 6.4V Output Thd+N (Total Harmonic Distortion):. | Metra Active Line Output Converter with Driver, Car Audio Accessories | AX-LOC2-2-LD | P.C. Richard & Son
