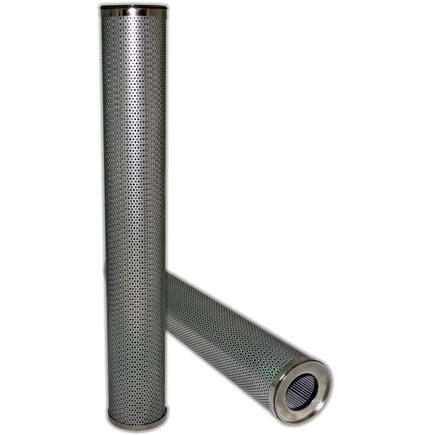

Main Filter MF0835064 - Aftermarket Replacement Hydraulic Filter With 5 Micron Rating, Glass, Inside Out Flow
Product information for Main Filter MF0835064 - Aftermarket Replacement Hydraulic Filter With 5 Micron Rating, Glass, Inside Out Flow
Technical Specifications Outside Diameter Top 3.795 Inide Diameter Top 2.205 Outside Diameter Bottom 3.795 Collapse Pressure 145 Operating Temp Min F -13 Operating Temp Max F 248 Capacity gr 182.6620595 Filter Area sq in 1949 Flow Direction Inside-Out Gasket Material Viton Fluid Type HH / HL / HM / HV Beta Ratio 1 200/5.4 Beta Ratio 2 1000/7.7 Micron 1 5. Interchange/replacement for OEM PALL p/n HC6500FCN26H. Compatible with OEM filter in fit, form and function. All of our elements are manufactured following ISO specifications. Buy hydraulic filters direct from the manufacturer. Built using Quality Components with strict quality control. Interchange/replacement for OEM PALL p/n HC6500FCN26H. Compatible with OEM filter in fit, form and function. All of our elements are manufactured following ISO specifications. Buy hydraulic filters direct from the manufacturer. Built using Quality Components with strict quality control. Main Filter MF0835064 replaces OEM HC6500FCN26H by PALL and is compatible in fit, form and function. All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941. All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter. Images may be a general representations of products. Handle: No, Product Media: Glass, Height (in.): 25.7, Bypass: No, Wrap: Yes, Outside Diameter (Top): 3.8 in., Micron Rating: 5, Inside Diameter (Top): 2.21 in., Minimum Operating Temperature: -13 Deg Fahrenheit, Collapse Pressure: 145, Outside Diameter (Bottom): 3.8 in., Filter Area (sq. in.): 1949, Fluid Type: HH / HL / HM / HV, Maximum Operating Temperature: 248 Deg Fahrenheit, Dust Holding Capacity: 182.66 grams, Gasket Material: Viton, Beta Ratio 2: 1000/7.7, Beta Ratio 1 : 200/5.4, Flow Direction: Inside-Out.
