Bzb Gear Bg-usb-lr100 Usb 2.0 Extender Over a Single Cat.X Cable up to 330 ft., Black - All
Product information for Bzb Gear Bg-usb-lr100 Usb 2.0 Extender Over a Single Cat.X Cable up to 330 ft., Black - All

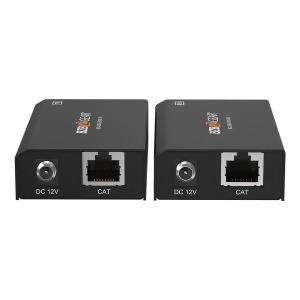

The BG-USB-LR100 USB 2.0 Extender over Single Cat.X allows USB devices to be extended at distances up to 100 meters 328 feet . This unit consists of two devices - transmitter and receiver.The transmitter is located at the computer while the receiver connects to peripheral devices such as printers, cameras, storage devices, and more. The receiver features a 2-port USB hub to allow connection for multiple devices. When you need a reliable, long-range solution for USB 2.0 connectivity look no further! FeaturesSupports USB 20 protocol, transmission rate up to 480MbpsSupports two USB 20 ports output in receiverCompact design for easy and flexible installationSupports extend distance up to 100 meters / 328ft via CAT 5e/6 cableSupports power over Cat5e/6/7 function, it means that either transmitter or receiver is connnected powered supply by 12V/1A power adapter, the other doesn't need power supplySupports one USB-B port input in transmitterSimple plug and play, no drive and setting installation requiredSpecificationsMechanical Color: BlackUSB protocol: USB 2.0Transmission rate: Up to 480MbpsTransmission distance: 100M 328ft ESD Protection: Human-body Model ±8kV Air-gap discharge ,±4kV Contact discharge Connections Transmitter: Input port: 1xUSB [USB-B, female],Output port: 1xCAT [RJ45, female]Connections Receiver: Input port: 1xCAT [RJ45, female],Output port: 2xUSB [USB-A, female]Mechanical Housing: Metal EnclosureMechanical Dimensions: Transmitter / Receiver: 82mm W x 49mm D x 20mm H Mechanical Power Consumption: Transmitter: 1.3W, Receiver: 2.3WMechanical Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°FMechanical Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F Mechanical Relative Humidity: 20~90% RH non-condensing Weight: 1 lbs
