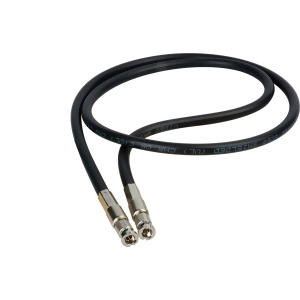

Laird Digital Cinema Hdbnc1694-mm15 High Density Hd-bnc Male to Hd-bnc Male 6G Hd-sdi Cable - 15 ft. - All
Product information for Laird Digital Cinema Hdbnc1694-mm15 High Density Hd-bnc Male to Hd-bnc Male 6G Hd-sdi Cable - 15 ft. - All
The HD-BNC aka Micro-BNC is fast becoming popular on broadcast routers like the Harris Selenio as well as devices like the Gennum GS344 Equalizer and GX329 Crosspoint. HD-BNC delivers true 75 ohm performance in a footprint 51% smaller than traditional BNC connectors, allowing four times the density. Engineered to enhance electrical and mechanical performance, the HD-BNC connector features the trusted, push and turn interface of a traditional BNC, providing tactile feedback and a positive lock for quick and assured mating. Using the same cable prep and termination specifications of legacy broadcast connectors makes adopting HD-BNC seamless. One of the distinct advantages of the HD-BNC is its lack of variable return loss and mechanical bonding commonly found with mini-BNC and DIN 1. / 2.3 connectors. The HD-BNC connector meet or exceeds SMPTE 292M and SMPTE 424M specifications for return loss. The dielectric had also been extended on the jack to improve the mechanical strength of the center contact without return loss performance degradation. Connectors provide a solid, anti-splay outside diameter to mitigate any "wiggle." . FeaturesHigh Density HD-BNC Male to HD-BNC Male 6G HD-SDI Cable - 15 ft.Belden 1694A CM Rated RG6 Digital Coaxial CableAmphenol ConnectorsSpecificationsSize: 15 ft.
