Lowell Manufacturing Lmc-lwr-723 Lwr-723 7Ru Wall Rack - 23 in. Deep - All
Product information for Lowell Manufacturing Lmc-lwr-723 Lwr-723 7Ru Wall Rack - 23 in. Deep - All

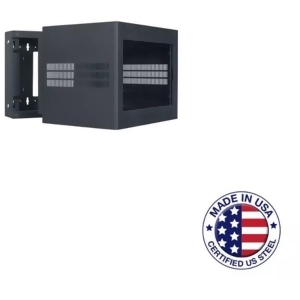

The Lowell LWR-723 heavy-duty sectional wall rack features a front mounting section that swings open from its backbox, allowing easy access to cables and equipment. The welded 16-gauge certified U.S. steel rack features fully gusseted corners and a triple formed side-to-bottom, side-to-top wrap design that mounts to the backbox with positive-locking, spring-loaded L-pins. A roller closure keeps the front closed without mandatory locking. U.S. steel with black powder epoxy finish. Optional front door order separately . Backbox: 5.80 in. deep with keyhole mounting slots on 16 in. centers, center opening to mount over electrical pull boxes, ground stud, embossed dimples on back plane for installation of board-mounted accessories, laser-cut knockout panels on top/bottom, and two keyed side locks. Front Mounting Section: Fully gusseted corners, triple formed wrap design mounts to backbox from inside with two heavy duty spring-loaded L-pins self seating, positive locking . Welded sides with vents. Knockouts for wireless antennas. FeaturesHigh quality construction and modern designsSuperior quality performance and reliabilityOne pair adjustable mounting rails tapped 10-32Integral top/bottom rails on E.I.A. spacing for mounting or lacingBlack wrinkle textured powder epoxy finishPilot Point screws with captive washersGrounding stud1x Rack - Sectional Wall Mount - 7 Rack Units, 23 D2x Adjustable Rails, BlackSpecificationsSize: 23 in.Weight: 58 lbs
