Rolls Rls-mx401 Stereo Four Channel Xlr Stereo Microphone & Line Mixer - All

Product information for Rolls Rls-mx401 Stereo Four Channel Xlr Stereo Microphone & Line Mixer - All

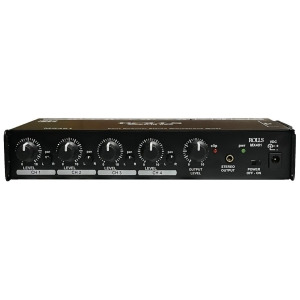

The Rolls mixes 4 microphones or line level XLRs into two balanced Stereo outputs. The four XLR inputs, each have individually switchable phantom power, MIC or LINE level switch, Level control, and a Pan control. It features two independant balanced, XLR outputs both with selectable MIC or LINE level. A 1/8 inch Stereo Aux/Headphone output has been provided along with a Clip indicator, Power indicator, and Power switch. The unit is also powered by two 9-Volt alkaline batteries or the included 15VDC power supply. The MX401 replaces the previous MX124. FeaturesFour balanced XLR InputsTwo balanced XLR OutputsSwitchable Output Level Line level, or mic Level controls for each channel3.5mm Stereo OutputRolls PS27s 15 VDC external power supply includedSpecificationsInput Impedance: 600 Ohms MIC - 10k Ohms LINEOutput Impedance: 600 Ohms MIC - 10k Ohms LINEFrequency Response: 20 Hz - 20kHz 0 / -3 dB Max Output Level: 14 dBMax Gain: 55 dBPhantom Power: 15 VDCPower: 12-15VDC / < 300-500 mWeight: 2.1 lbs
