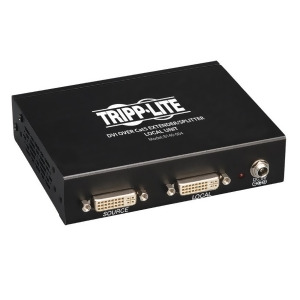

4-Port DVI Over Cat5-Cat6 Extender Splitter Video Transmitter 1920 x 1080 at 60Hz Up to 200 ft. The B140-004 transmits a DVI-D Single-Link signal to four monitors up to 200 ft. away using a single Cat5e/6 patch cable. To achieve maximum distance and resolution, use 24 AWG Solid Wire Cat5e/6 cable Tripp Lite's N202-Series . An additional DVI port is provided for the connection of a local monitor. This local DVI port can also be used to daisychain up to 3 units together, allowing for the connection of up to 13 monitors 12 remote, 1 local . Mounting hardware is included that allows the unit to be rackmounted, wallmounted or pole mounted. In addition, up to three units can be mounted in 1U of rack space using a Tripp Lite B132-004-RB 19 rackmount bracket. The B140-004 is Compatible with all operating systems, and is plug and play, with no software or drivers requiredInstallation is simple. Connect the B140-004 transmitter to a DVI source using a Tripp Lite P561-Series DVI cable not included . Connect a Tripp Lite B140-series receiver not included to each display using a Tripp Lite P561-Series DVI cable not included . Finally, each remote receiver is connected to an RJ45 port on the B140-004 using a single Cat5e/6 cable. For longer extension distances, use a B140-1A0 or B140-1A0-WP active receiver unit to extend a 1920 x 1080 @ 60Hz signal up to 150 ft., or a 1024 x 768 @ 60Hz signal up to 200 feet.For shorter extension distances, use a B140-1P0 or B140-1P0-WP-1 passive receiver unit to extend a 1920 x 1080 @ 60Hz signal up to 50 feet, or a 1024 x 768 @ 60Hz signal up to 100 feet.Further expand the range and number of monitors by using a B140-110 repeater unit. Add up to four remote units three repeaters and one active receiver to each channel of the B140-004, for a total of 4 displays per channel. An active receiver should be the last unit in a channel A 1920 x 1080 @ 60Hz signal can be extended up to 125 feet from each repeater to the next unit in the channel, or a 1024 x 768 @ 60Hz signal can be extended up to 175 feet.Features:Transmit a DVI-D Single-Link signal to four monitors up to 200 ft. away using a single Cat5e/6 patch cableSupports DVI-D Single-Link video resolutions up to 1920 x 1080 @ 60HzFor longer distances - Use a B140-1A0 or B140-1A0-WP active receiver unit to extend a 1920 x 1080 @ 60Hz signal up to 150 ft., or a 1024 x 768 @ 60Hz signal up to 200 ft.For shorter distances - Use a B140-1P0 or B140-1P0-WP-1 passive receiver unit to extend a 1920 x 1080 @ 60Hz signal up to 50 ft., or a 1024 x 768 @ 60Hz signal up to 100 ft.Use 24 AWG, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, to achieve maximum distance and resolutionAn additional DVI port is provided for the connection of a local monitor. This local DVI port can also be used to daisychain up to 3 units together, allowing for the connection of up to 13 monitors 12 remote, 1 local .Further expand the range and number of monitors by using a B140-110 repeater unitAdd up...
