C42-80301-0SW Screw Less Snap on Wallplate White

• Round Outlet Box.
• Color - Gray.
• Five 1/2 in. Holes.
• Mounting Lugs.
• 4 Closure Plugs.
• Ground Screw.
• Weatherproof.
• Dimension - 5.51 x 4.25 x 1.61 in.
• Item Weight - 0.46 lbs.

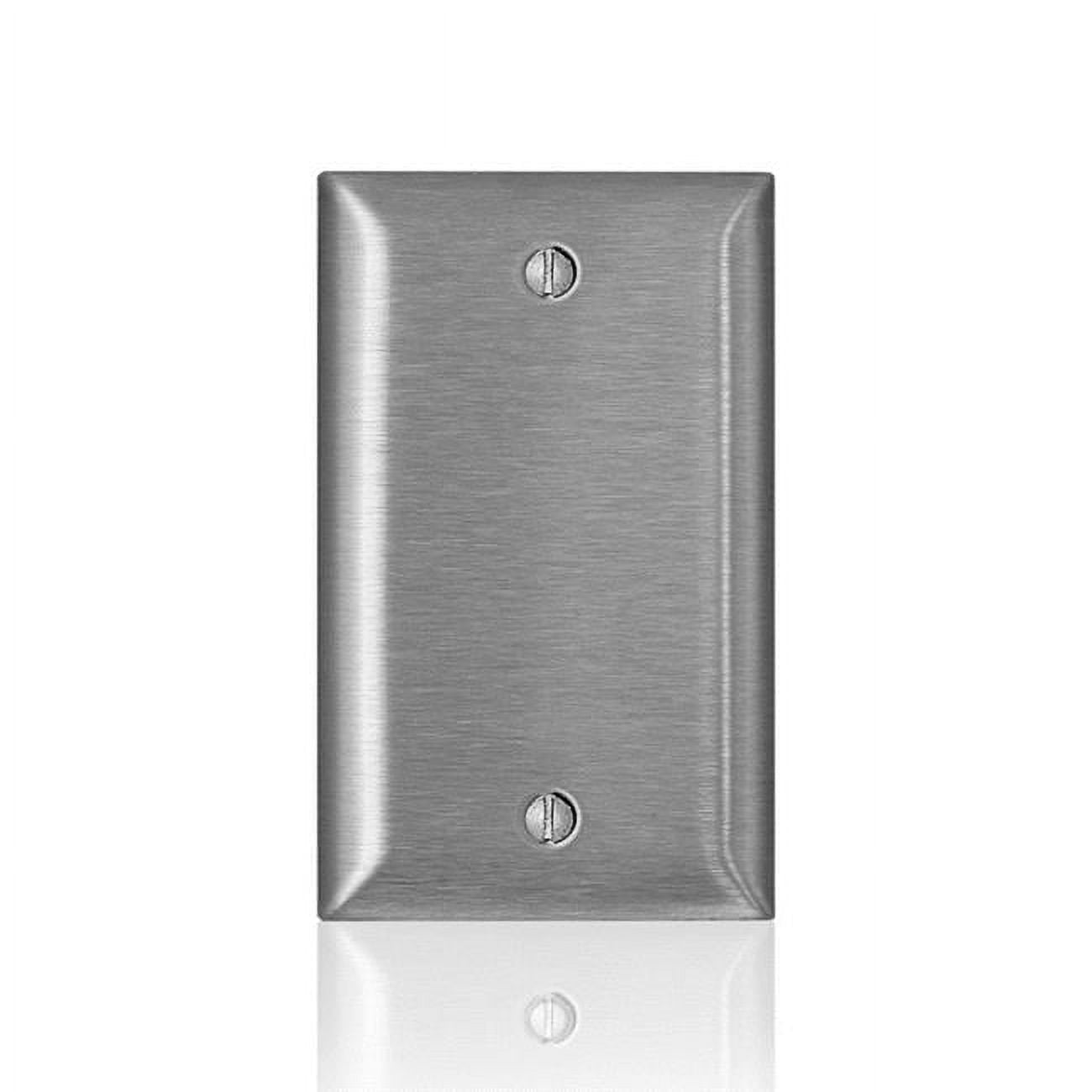

• Finish-Stainless Steel
• Number of Gangs-1 gang
• Material-Metal
• Wall Plate Style-Blank
• Shape-Rectangle
• Height-4.54 in.
• Width-2.79 in.
• Depth-1.8 in.
• Covers a single duplex electrical outlet
• Paintable to match your decor
• Easy to clean, smooth satin finish
• Round edges resist dust accumulation

• Weight: 0.12 lbs

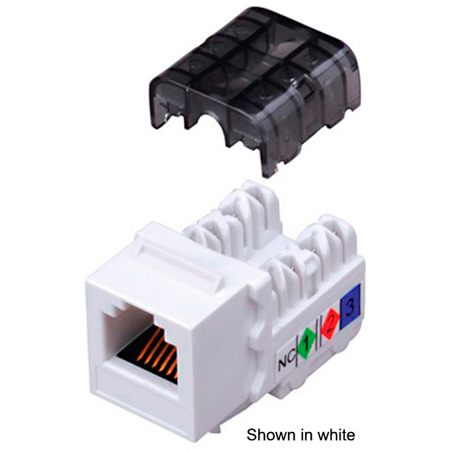

Vanco's Category 3 Voice Grade 90 Degree Keystone Inserts feature an Innovative Pyramid Shaped Punch-Down Block for Easy Conductor Insertion. All 90 Degree, 110 Style IDC Punch Down inserts are Compatible with Leviton, ICC, Allen Tel and Many Others. They Accept 23-24 AWG Solid Cable and T568A or T568B Universal Wiring. Constructed of High Quality 50 Microns Gold Plating. Meet EIA/TIA 568B.2 standards and are UL Listed .

Category 3 Voice Grade 90 deg Keystone Insert 6-Condtion - Light Almond

• Weight: 0.02 lbs

Designed to meet the latest UL standard for auto-monitoring our complete line of self-test GFCIs periodically conduct an automatic internal test to confirm that it can respond to a ground fault.

• 15 amp 125V Duplex GFCI Outlet for 5-15R
• Auto adapts and shifts to more frequent testing if potential problem is detected
• Provides continuous ground fault protection detects and trips on actual ground fault even when self-test is being conducted
• Status indicator light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
• Patented lockout action prevents reset if GFCI is damaged and cannot respond to a ground fault
• Electronics are designed to minimize any false triggers
• Reduced depth makes it easier to install in any electrical box, even shallow ones
• Terminals allow for easy wiring options back and side wire capable
• External back wire clamps provide visual indication of proper wire seating
• Withstands high torque and resists wire pullout

• Color: Gray

The D SERIES-PSP1A is a compact active loudspeaker that supplies rich, detailed sound in Decora-compatible wall or chassis mounts. It is a single-pair audio amplifier module compatible with RDL Format A twisted pair products. The PSP1A receives audio and 24 Vdc power through a rear-panel RJ45 jack. A rear-panel switch set during installation determines which of the three FORMAT-A pairs is amplified. Amplification is provided by a high-efficiency Class D power stage with audio filtering tailored for crisp, pleasant audio clarity. The high-efficiency Class D output stage produces negligible heat for all levels of expected voice or music modulation. The amplified output level is controlled by a front-panel volume control. The PSP1A includes an analog compressor/limiter that makes higher average sound output levels possible without clipping.The driver is constructed of materials found in premium larger speakers. The unique steel enclosure provides full baffling in a tightly sealed rigid structure. This produces sonic presence within an extended frequency range expected from larger speakers. Internal filtering rolls off out-of-band frequencies to reduce distortion and increase peak power capability. Dispersion covers a spherical area of nearly 180 degrees with the speaker mounted in a wall.Models are obtainable with grills in black (DB-PSP1A), white (D-PSP1A), gray (DG-PSP1A) or stainless steel (DS-PSP1A).

• Decora-Style Active Loudspeaker - Format-A
• Exceptional Audio Quality for Ultra-Compact Size
• 2 Watt RMS Audio Amplifier
• Compressor/Limiter Prevents Clipping
• Connects to Format-A Sender using Twisted-Pair Cable
• Powered from RDL Twisted Pair Format-A Sender
• Front-Panel Gain Adjustment
• Acoustically Optimized Decora Enclosure
• Fidelity Comparable to Larger Drivers
• Hemispherical Dispersion Mounted In Wall or Flat Surface
• Input: RDL Format-AInput Connection: RJ45
• Format-A Signal Pair Used: Switch-selectable A, B, or C
• Gain Adjustment: Single-turn audio taper
• Maximum SPL: 81 dB
• Frequency Range: 150 Hz to 20 kHz, nominal
• CMRR: > 80 dB Power Requirement: 24 Vdc @ 55 mA ; 100 mA , Ground-referencedAmbient Operating Environment: 0° C to 40° C Maximum; 20° C RecommendedDimensions: Height: 4.12 in. 10.46 cm; Width: 1.72 in. 4.37 cm; Depth: 2.27 in. 5.77 cm

• Weight: 0.56 lbs

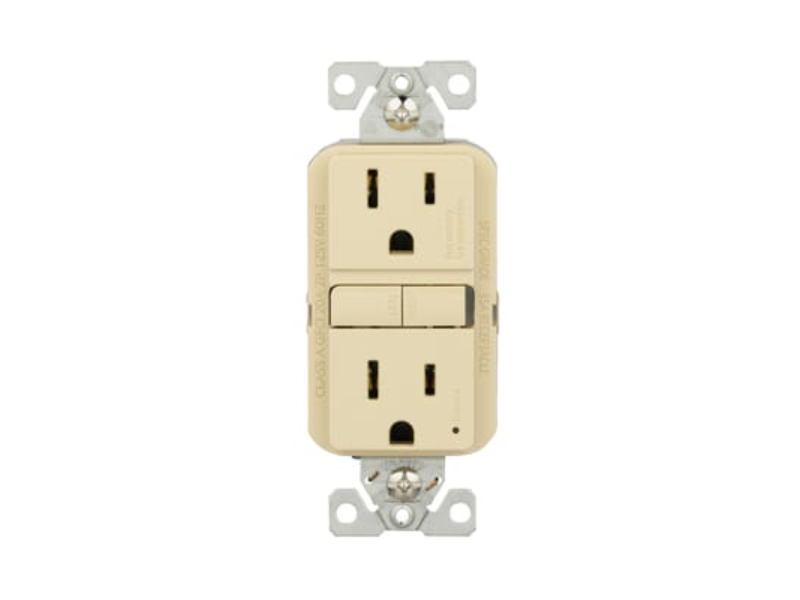

Ensures electrical shock protection with periodical automatic testing. In no GFCI protection is present the receptacle will render itself inoperable and a red indicator light will glow notifying the user there is no power and the device must be replaced. Back wire and side wire.

• Product Length/Depth: 1.03 in.
• Height: 4.19 in.
• Width: 1.69 in.
• Certifications: cULus Listed NOM
• Circuit Interrupter Type: GFCI
• Design: Slim Design
• Type: Self Test
• NEMA Configuration: 5-15R
• Color: Ivory
• Wiring Method: Back & Side Wire
• Voltage Rating: 125V
• Allowable Wire Size: 14-10 AWG
• Amperage Rating: 15A
• Torque Rating: 16 ibf-in
• Weight: 0.375 lbs

2 Channel Remote Control for STICK-ON-Remote Selection of Audio or Video Sources

The front panel of the D-RC2ST features two pushbuttons with two associated LEDs. Upon initial power-up, source 1 is selected. Touching the other button de-selects source 1 and immediately selects source 2. An LED adjacent to each button shows which source is selected. In a typical installation, the D-RC2ST may be used to select between two audio or video sources, or to route audio to two destinations. To select between two audio sources, the D-RC2ST is connected to an RDL ST-SSR1 Solid-State Audio Switch. For video switching, an RDL TX-MVX may be used. For audio routing, an RDL ST-RX2 is used. In each of the above examples, only one output terminal is needed for triggering. Therefore a single shielded pair (or 3-conductor cable) is required for remote connection. For more complex switching networks, both outputs may be used. In installations where ULTRASTYLE™ wall controls are preferred, use the RUC-4 Universal Remote Control.

Features:

• Remote Selection of 2 Audio Sources, Destinations or Functions
• Single-Button Selection for Each Source
• Open-collector Switching of 1 of 2 Module Functions
• 3-wire or 4-wire Remote Wiring
• Professional Aesthetic Appearance
• Companion to other RDL Remote Controls

Specifications:

• Selectors (2): Momentary pushbuttons, (1 for each channel)
• Indicators (2): Red LEDs, (indicates channel selected)
• Connections: Detachable terminal block;Power input; open-collectorOutputs (25 mA current limited)Ambient Operating Environment: -10° C to 55° CPower Requirement: GROUND-REFERENCED, 24 Vdc @ 30 mA

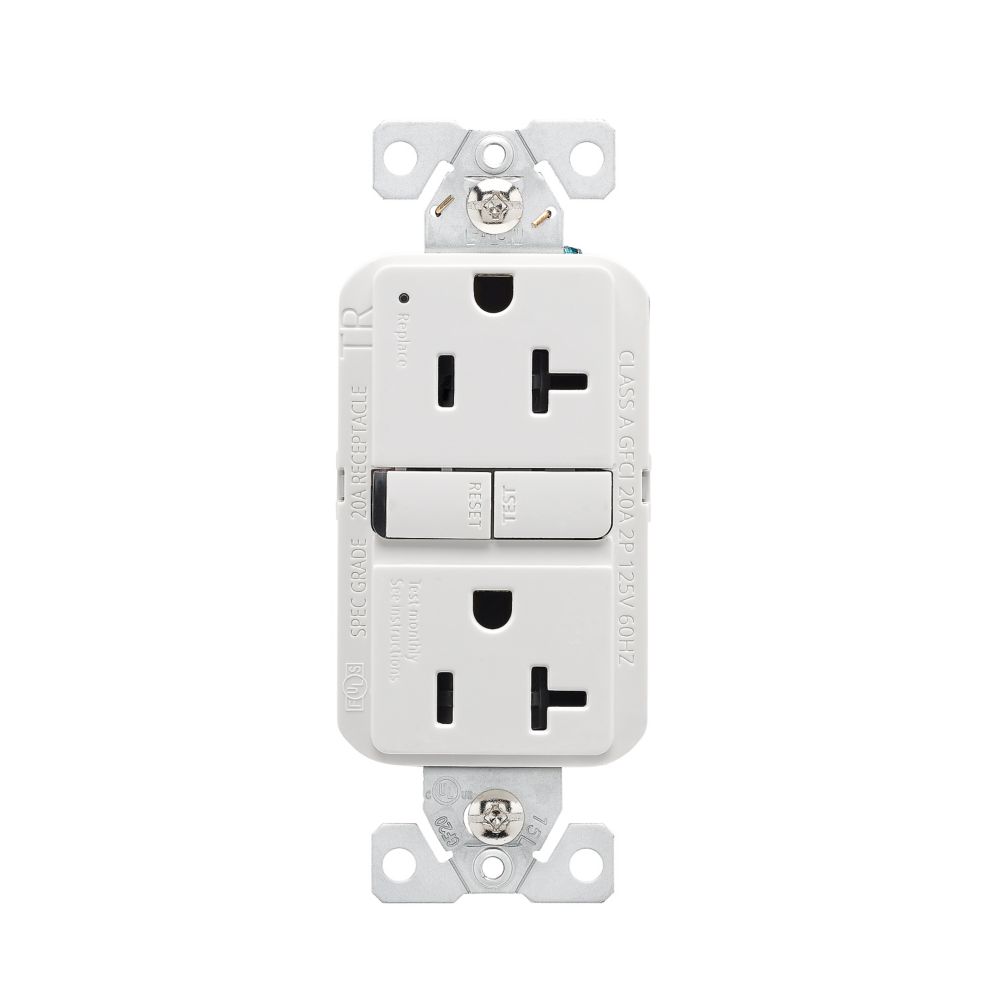

125 Volt. 20-Amp. Performs self test to ensure GFCI protection, the automatic test shall be repeated at least every 3 hours. The status indicator light will glow red notifying the user there is no power and the device must be replaced. Easy to use horizontal test/reset button alignment for larger unobstructed area. Trip indicator light notifies user of a tripped condition. Features safety shutter system that prevents the insertion of foreign objects into the receptacle openings. The safety shutters will only open when a 2 bladed plug presses simultaneously against 2 shutters. Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure. A mid-size wall plate is included.

• Circuit Interrupter Type: GFCI
• Special Features: Slim Design
• Type: Self-Test
• Nema Configuration: 5-20R
• Color: White
• Wiring Method: Back And Side Wire
• Features: Tamper Resistant; Fedspec Certified
• Voltage Rating: 125V
• Allowable Wire Size: #14-10 Awg
• Amperage Rating: 20A
• Torque Rating: 16 lbf-In
• Weight: 1.03 lbs
