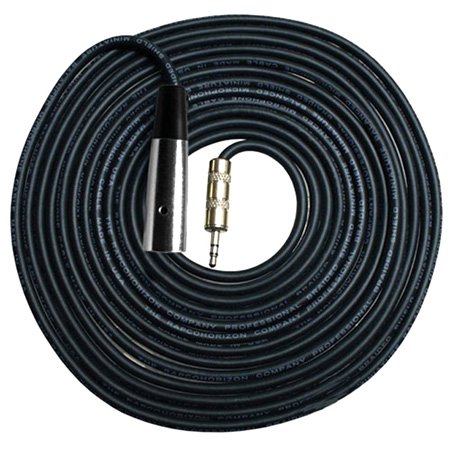

RPC-MINI3-6MN1 6 ft XLRM to 0.125 in. TRSM 2 Conductor & Shield Balanced Cable Assembly
Product information for RPC-MINI3-6MN1 6 ft XLRM to 0.125 in. TRSM 2 Conductor & Shield Balanced Cable Assembly
TRSM 2 Conductor & Shield Balanced Cable Assembly
MINI cables come with 1/8 inch mono mini connectors on each end. The MINI3 cables are 1/8 inch stereo connectors.
Features- (1) 20 gauge (for MINI) or (2) 24 gauge (for MINI3) center conductors
- Utilizing a serve shielded process for quiet operation yielding maximum flexibility
- Matte jacket PVC material is very flexible yet durable with very low memory
- Pure copper conductor and shield
- Individually tested for performance and quality
- Conductor Gauge: (2)24 gauge
- Shield: Bare annealed copper braid
- Jacket: Matte PVC
- O.D: 0.175 in.
- Capacitance: 32 pF ft. 1 kHz
- Characteristic Impedance: 45 NOMINAL
- D.C. Resistance: 20°C
- Shield: 0.8
- Size: 6 ft.
- Weight: 0.1 lbs
