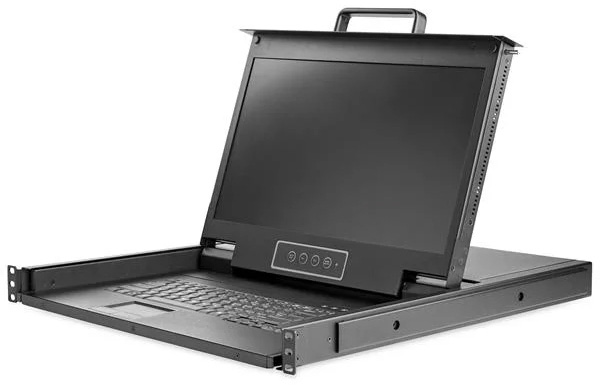

The RKCONS17HD is a High-Definition LCD Monitor that provides centralized control of a single PC or dozens of servers. This HD rackmount KVM console also gives you easy access to and visibility of your system while it's mounted in a server rack or cabinet.
The 1080p KVM console's monitor is 17.3" and LED back-lit, for low power consumption. It supports high-definition resolutions up to 1920x1080 providing sharper video performance. This HD console also provides more screen space, helping you to run multiple applications on the same screen, increasing your productivity.
Connect to your servers through a separate KVM switch , the RKCONS17HD LCD console installs into 1U of rack-space, offering a space-efficient solution for complete console control.
Clutter-Free MonitoringThe rack-mount LCD console slides out from 1U of rack space, enabling you to easily monitor and control a single server or multiple servers when connected through a KVM switch. The rackmount VGA KVM features a handle that makes it easy to slide the console in and out of the server rack, keeping your area organized and clutter-free.
Simple Setup
Features- Save money and reduce hassle with a cost-effective rack-mount LCD console
- Crystal-clear picture quality and maximum screen space with support for resolutions up to 1080p
- Reduce your server room clutter with a 1U rack-mount design
- Intuitive system integration with direct support for a single server or KVM switch
- Built-in touchpad and keyboard
Specifications- Audio: No
- Display Size: 17.3"
- KVM Ports: 1
- Number of Monitors Supported: 1
- Panel Type: Active Matrix TFT LCD
- PC Interface: USB
- PC Video Type: VGA
- Rack-Mountable: Yes
- U Height: 1U
- Aspect Ratio: 16:9
- Brightness: 300 cd/m
- Color Depth: 6-bit, 262144 colors
- Contrast Ratio: 800:1
- IP Control: No
- Maximum Analog Resolutions: 1920x1080
- Maximum Number of Users: 1
- MTBF: 50000 Hours
- Pixel Pitch Support: 0.1989 x 0.1989 mm
- Supported Resolutions: Resolutions up to 1920x1080 @ 60Hz
- Viewing Angle: 170deg (H), 170deg (V)
- Host Connectors: 1 - HD15 (15 pin, High Density D-Sub) Female Input
- Other Interface(s): 1 - IEC 60320 C14 Power Female Input
- LED Indicators: 1 - Power / Status LED
- Input Current: 1.5A
- Input Voltage: 100 - 240 AC
- Power Consumption (In Watts): 13W
- Power Source: International Power Cords
- Humidity: 10 ~ 80% RH
- Operating Temperature: 0degC to 40degC (32degF to 104degF)
- Storage Temperature: -20degC to 60degC (-4degF to 140degF)
- Cable Length: 1.8 m
- Color: Black
- Weight: 35.4 lbs
