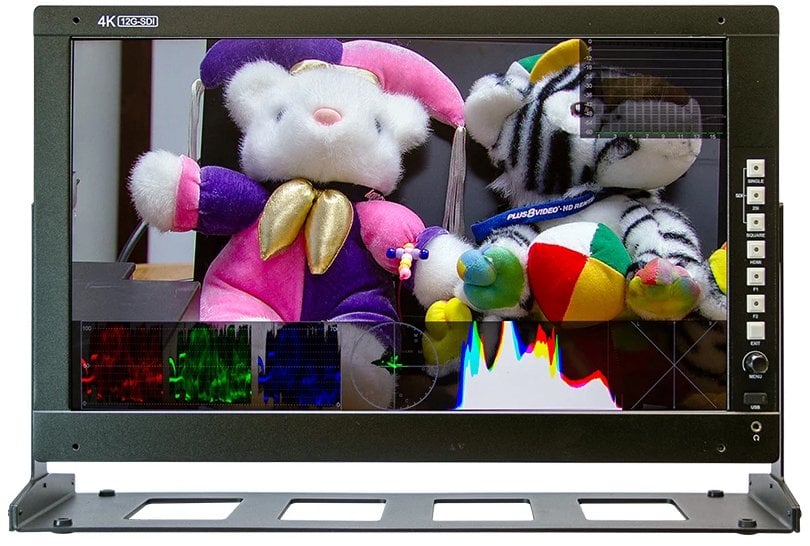

VZ-173PM-12G 17.3 in. 4K UHD Broadcast Monitor
Product information for VZ-173PM-12G 17.3 in. 4K UHD Broadcast Monitor
ViewZ VZ-173PM-12G is a 17.3 Inch 4K UHD broadcast monitor, 330cd,m2, IPS 1920x1080 Pixels, 12G-SDI ,Quad SDI Inx4,Outx4, HDMI Inx1,Outx1, HDR (ST2084,HLG), Waveform,Vector Scope, False Color, Tally, Freeze, AC,DC(XLR) Operations.
Features- 17.3" 4K,12G-SDI Monitor
- All SDI signals Input - 12G-SDI,6G-SDI,3G-SDI (Level A, DL-B, DS-B) , HD-SDI,SD-SDI
- Quad SDI,Dual SDI,Single SDI,HDMI
- ST2084 , HLG , Time Code ( LTC , VITC )
- Loop-Through (SDI)
- False Color , Tally ( Red , Green , Yellow ) , Freeze
- Audio Channel Output 2ch (out of 16ch)
- Front User definable buttons F1 and F2
- Picture , (User) Marker , UMD
- Gammas 1.8, 2.0, 2.2, 2.35, 2.4, 2.6 & 2.8
- Waveform,Vector Scope,Histogram
- Check Field,Exposure,HV Delay,Freeze
- False Color , Color Temperature , Color Space
- Screen Size: 17.3"
- Max Resolution: 3840 x 2160 @60Hz
- Pixel Pitch: 0.1989 mm x 0.1989 mm
- Brightness: 300 cd/m(Typical)
- Contrast Ratio: 1200-1
- Aspect Ratio: 16-09
- Viewing Angle (H/V): 170/170
- Display Color: 1.07 B
- HDR: ST2084 300/1000/10000/HLG
- Supported Log Formats: SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or Use
- LUT (Look Up Table): Support (3D LUT - .cube Format)
- Technology: Calibration to Rec.709 with Optional Calibration Unit
- Weight: 7.05 lbs
