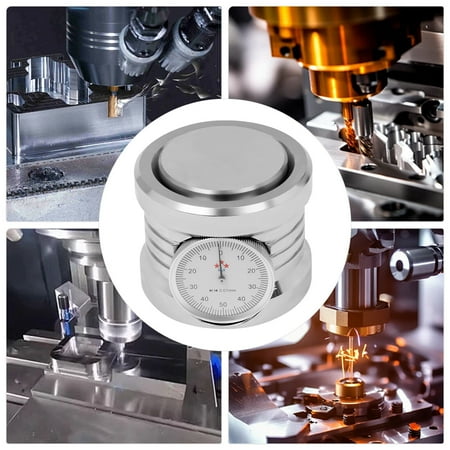

0.01mm Z Axis Zero Pre-Setter Tool Setter Magnetic Z Axis Dial Setter Silver

Acrylic 60MM Universal Frame PCB Jig PCBA Test Stand Fixture Tool 240 * 180 mm Specification: Board Material: Acrylic Plate Thickness: 10mm (0.39 Inch) Pcb Board Size: 240 * 180 mm (9.45 * 7.09 Inch) Quick Grip Stroke: 60 mm (2.36 Inch) Package Size : 40.00*32.00*8.00 Cm (15.75 *12.6 * 3.15 Inch) Weight: 9kg Features: 1. the Lid Can Be Opened to Facilitate the Welding of Wires; 2. Replace the A B and C Boards for Easy Replacement 3. the Distance Between B Board and C Board Is Adjustable. 4. the Positioning Pin Has Insufficient Elasticity and 4 Holes Are Reserved for Easy Increase; 5. Standard Mounting Hole Position Accessories Can Be Freely Selected; 6. the C-plate Adapter Plate Can Be Rotated 90°. Packing Including: 1 X PCBA Test Stand

Description 3040 Solder Paste Printer Our solder paste printer is equipped with X and Y axis fine-tuning rotary button trim correction which is convenient for positioning and ensures repetition accuracy. Its base is made of thickened steel plate for durability and longer service life. The printing stencil is fixed by 4 with knobs and a pressure plate fast and firm with high repeat accuracy. It will be your ideal choice for screen printing table. Specifications Material: Aluminum Max. Printing Size: 300*400 mm/11.81*15.75in Max. Screen Frame Size: 370*470 mm/14.57*18.50in Printing Speed: Manual Control Thickness of Printed Material: 0-80 mm/0-3.15in Vertical and Horizontal Adjustment of Worktable: 10 mm/0.39in Printing Platform Height: 19cm/7.48in Repeatability: ±0.01 mm Product Size: 54*38*39.9 cm/21.26*14.96*15.71in Package Size: 61*45*22cm/24*17.7*8.6in Net Weight: 20kg/44.09lbs Gross Weight: 23kg/50.70lbs Work Table Size: 300*400mm Print Size: 250*400mm Max Net Frame Size: 370*470mm Weight：nw.25kg Gw.35kg What s Included? 1 X 3040 Solder Paste Printer One Set of Accessories Details Anti-slip Base: There are four anti-slip support feet on the base to ensure the stability of the solder paste printer when working so that the work accuracy of the solder paste printer is guaranteed. Adjustment Knob: The solder paste printer is equipped with X-axis and Y-axis adjustment knobs for high precision position adjustment. The knobs are designed for easy operation and energy saving. Application The screen printing table is used in a wide range of applications such as the packaging printing industry advertising printing industry circuit printing industry craft printing industry glass printing industry etc. Notes 1. After each work is completed the machine must be cleaned and maintained in time to avoid affecting the service life of the machine. 2. When the printing template moves up and down do not use too much force to avoid damaging the machine and affecting the positioning accuracy. 3. Pay attention to protecting the positioning pins when taking and placing the circuit board to avoid damage. For positioning holes of different sizes you can also equip the corresponding positioning pins. 4. Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement and make sure you do not mind before ordering.

Description: As a skilled engraving worker the laser carving rotary axis would be an ideal addition to your toolset! It allows for accurate and efficient marking of small areas maximizing your productivity while delivering precision. Not only that but it has an engraving diameter of 0.4-5.9 and an engraving length of 1.97-13.78 providing you with maximum versatility. Get yours today and start enhancing your DIY projects with this must-have tool! Application: It is suitable for personal DIY home or business. It can be used in conjunction with a 50W 60W 80W 100W and 130W CO2 laser engraver for 360° engraving of cylindrical and round objects including beverage cans eggshell cups goblets wine bottles baseballs baseball bats cups bottles flutes gourds tubes pipes bowls etc. How to Carve a Cylindrical Object: 1. Connect the motor on the rotary axis to the drive (Y-axis on the machine). Please make sure the phase is matching. If your motor driver on the machine is 2-phase(Port A+ A- B+ B-); the 3-phase motor s port is U V and W. 2. Enable rotation in the software(not included) and set the correct values for engraving part diameter and circle pulse. The rotary reduction ratio is 1:2. Specifications: Material: Aluminum Alloy Rubber and Steel Process: Anodizing and Chamfering Motor Type: 2-Phase Stepper Motor Mounting Type: Freestanding Color: Black Rotation Type: Roller Power Source: Corded Electric Adjustable Speed: 10-200rpm Gross Weight: 10kg/22lbs Net Weight: 9kg/19.84lbs Axis Height: 80-130mm/3.15-5.12in Engraving Diameter: 10-150mm/0.4-5.9in Engraving Length: 50-350mm/1.97-13.78in Applicable Workpiece Diameter: 10-150mm/0.4-5.9in Package Size: 67*20*27cm/26.38*7.87*10.63in Product Size: 49*26*13cm/19.3*10.2*5.1in Package Included: 1* Laser Rotary Axis Notes: Please note that the laser machine is not included in this product. This item is a roller 2-axis (with a 2-phase stepper motor) with 4 leads please confirm before ordering. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before you order.
