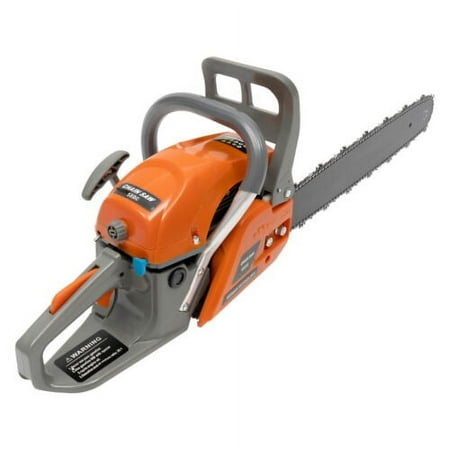

20 2-Stroke Gasoline Chainsaw Outdoor Wood Cutting Gas Powered Chain-Saw 2400W

Product information for 20 2-Stroke Gasoline Chainsaw Outdoor Wood Cutting Gas Powered Chain-Saw 2400W

With High-quality Materials Superior Performance and a Powerful Engine This Gasoline Chainsaw Is an Efficient Professional Cutting Tool That Saves You Time and Labor. Silent and Vibration-dampening Design Ergonomic Handle Dual on/off Switch Brake Flap and Pull-type Ignition Make It Comfortable and Safe to Use. How to Assemble the Chainsaw Install the Jam Teeth in the Right Direction. Install the Guide bar. Install the Chain. Cover the Side Cover. Adjust the Chain Tightness. Tighten the Screw. How to Start the Chainsaw 1. Push the Brake. 2. Move the on/off Switch to the on Position. 3. Pull the Choke Knob Fully out to Position. 4. Pull the Start Handle(Max 6 Times). 5. Push the Choke Knob Back Fully. 6. Pull the Starter Until the Engine Start. Specification Color: Orange Style: Modern Model: 5800 Assembly Required: Yes Material: Nylon Mn Steel Aluminum Engine Type: Single Cylinder Air-cooled 2-Stroke Ignition System: Self-reset Pull Start Fuel Tank Capacity: 550ml/18.6oz Chain Fuel Tank Capacity: 140ml/4.73oz Bore: 45.2mm/1.78inch Volume: 116db Power: 2.4kw Speed: 10000rpm Displacement: 58cc Oil Mixture: 25:1(90# Gasoline: Oil) Chain Length: 50cm/20inch Max. Cutting Diameter: 50cm/20inch Overall Size: 91*24*29cm/35.82*9.44*11.41inch Package Size: 50*27*30cm/19.68*10.63*11.81inch Gross Weight: 7.5kg/16.53 Lbs Net Weight: 7kg/15.43 Lbs Package Included 1* Gas Chainsaw 1* Chain 1* Guide bar 1* Chain bar Cover 1* Fuel Tank 1* Tool Bag 1 Pair* Gloves 1* Screwdriver 1* Funnel 1* English Manual Other Accessories for Assembly Notes Before Starting the Gasoline Chainsaw Please Ensure That It Fits Well with the Guide bar and Use a Wrench to Adjust the Chain. When Installing the Guide bar Please Note That the Screw Column on the Side Cover Must Be Aligned with the Guide bar Hole Before Installation(the Function of the Screw Column Is to Adjust the Chain Tightness.). Please Use Gasoline 90# with Special 2-Cycle Engine Oil and Never Use Pure Gasoline. Gasoline and Oil Mixture Ratio: 25:1. the Oil Output Can Be Controlled to Turn Larger to the Left and Smaller to the Right. Please Note That After the First Ignition Sound Closing the Choke and Repeatedly Pulling the Start Handle Will Suck in Too Much Fuel and Prevent the Engine from Starting. If the Choke Knob Is Not Fully Pushed Back After Pulling the Starter Handle up to 6 Times the Engine Preheating May Be Missed. Too Much Fuel Will Flow out and Submerge the Spark Plug. Then You Can t Start the Chainsaw. the Damper Is Used to Regulate Air Intake. When the Engine Is Cold or Not Used for a Long Time the Damper Needs to Be Pulled. If the Engine Is Hot It Can Be Started Directly. This Is the Same As the Principle of Starting a Motorcycle! Close the Damper Pull the Start Handle Again 1-3 Times to Start It and Then You Can Use It Normally. Please Pay Attention to the Tightness of the Chain During Installation (Pull the Chain by Hand. the Distance Between the Chain and the Guide Plate Is 0.12-0.2 Inches.) Otherwise It Will Affect the Use Effect. After the Chainsaw Is Started (the Oil Filler Door Must Be Empty.) It Must Wait for the Chain to Receive Oil Before Starting to Work(the Oil Pump Will Discharge Oil and the Ground Will Become Wet.). The Carburetor Must Be Cleaned After Every 100h of Operation Before Use. the Air Filter Must Be Cleaned After 8h of Operation.
