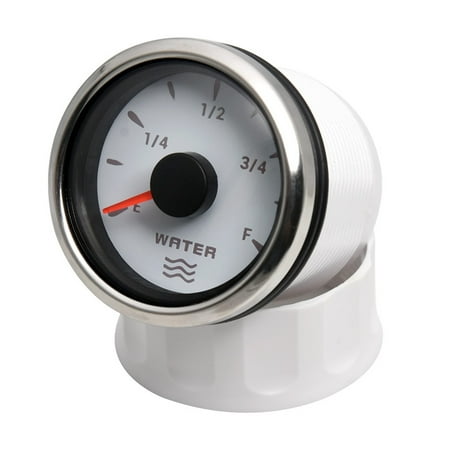

A Water Level Gauge With Water Level Sensor 52mm Water Level Meter With 7Colors Backlight 100-550mm 0-190Ohm Sensor For Oil Tank Suits Most Tanks
Product information for A Water Level Gauge With Water Level Sensor 52mm Water Level Meter With 7Colors Backlight 100-550mm 0-190Ohm Sensor For Oil Tank Suits Most Tanks
A Water Level Gauge With Water Level Sensor 52mm Water Level Meter With 7Colors Backlight 100-550mm 0-190Ohm Sensor For Oil Tank Package Include: Package 1 1 x 52mm Gauge 1 x Sensor 1 x Gasket 5 x Screws Package 2 1 x 52mm Gauge Gauge Specifications: - Input signal: R ohm - Indication range: E-F - Working current: 60mA - Install diameter: 52mm - Working voltage: 9~32VDC - Storage temperature: -40~+85 - Operating temperature: -30~+75 - Water Level Gauge Waterproof : front cover IP67 back cover IP5 - Backlight: (7 colors ) red.green.blue.yellow.olive . orange.purple Sensor Specifications: - Protection ank: IP67 - Resolution range: 21 mm - Assembly: SAE standard 5 holes - Rated current for alarm switch: 500mA - Operating temperatures: - 40 to 85 Celsius - Fit for Fuel Level Gauge and Water Level Gauge - Sensor Length :100MM~1500MM - Mounting: 5 pieces of M5 screws and 2 mm thick gasket - Output signal: 0~190 ohm (Standard European) Sensor Connection: Blue wire: connect the ground wire Brown wire: connect the gauge signal wire Empty oil level 0 ohm Full oil level 190 ohm Please attention : 0~190 ohm sensors can only be applied to 0~190 ohm fuel gauge. Sensor Length: 100mm 150mm 200mm 250mm 300 mm 350 mm 400mm 450 mm 500mm 550mm 600mm 650mm and so on Output signal: 0~190 ohm (Standard European) 240~33 ohm (Standard American) and so on Related Products:water tank level monitor water tank level sensor tank water level indicator wireless water tank level monitor water tank level indicator wireless tank level monitor water level sensor water level water level indicator water level alarm water monitor oil tank monitor rv tank sensors water level gauge high water alarm for sump pump
