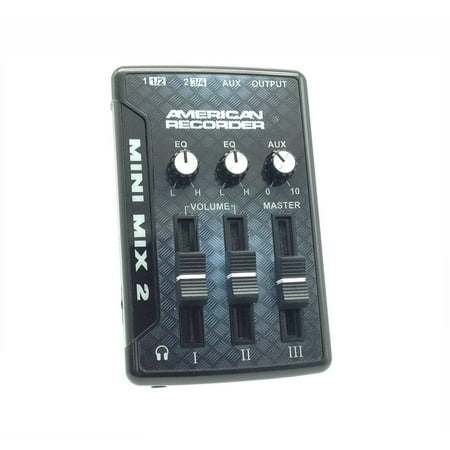

AMERICAN RECORDER Audio Mixer with USB Interface

Product information for AMERICAN RECORDER Audio Mixer with USB Interface

MIX LIKE A PRO Long throw linear faders for that pro feel! Mix microphones & instruments along with smartphones tablets mp3 players and computer devices. USB INTERFACE Output audio directly via USB for better recording quality; compatible with Windows MacOS Linux and Android (iOS not supported). SUPER SMALL COMPACT SIZE Easily fits into a briefcase or backpack and can store in a desk drawer. STEREO 3 IN / 2 OUT CONFIGURATION 3 stereo channels (3.5mm / 1/8 ) includes 1 AUX IN; 1 output jack (3.5mm) 1 headphone jack and USB Audio Out. AMPLIFIER GAIN Increase input sources volume levels by up to 45dB with LED indicator built in to monitor signal levels. DISCRETE HEADPHONE LEVEL CONTROL Adjust your headphone level independent of main output level. FLEXIBLE POWER Power the mixer from any USB charger USB port USB OTG-equipped smart device* or USB power banks (may not be compatible with power banks with higher than average low-current shutoff features). Technical details Controls and Jacks 3 x 3.5mm Stereo Inputs (Can be split Into 4 x 1/4 mono; adapter required) 1 x 3.5mm Stereo Outputs and 1 x 3.5mm Stereo Headphone Output Power / Overload Indicator (LED shows power and presence of overload/distortion) EQ Knobs For Ch1 and Ch2 Master and Channel Volume Sliders USB Power / Output Jack Specifications Gain: Max. 35dB Power: 5V Micro USB power source USB Audio sampling rate: 48KHz/16bits. (USB Audio Output only) Weight & Dimensions: 3.2oz / 95g; 2.5 x 4.1 x 0.9 / 10.5 x 6.8 x 2.4cm Package Contents: MINI MIXER 2 USB to Micro USB Cable 5V/1A Adapter Dust-Proof Pouch Owner s Manual One year limited warranty Operation Tips: To increase volume first increase the volume setting on your sound source. Be sure the indicator LED is not pink — ideally it will be blue with occasional flashes of pink. MINI MIX 2 does not provide power for microphones such as condenser and electret microphones including most lapel or lavalier mics. Microphones of this kind will require an additional preamplifier when used with the MINI MIX 2. Please choose dynamics microphones for use with the MINI MIX 2. FAQ The mixer is distorting. What do I do? Answer 1 Please turn down the channel volumes until the distortion stops and use the master volume and the volume on your speakers to make the volume louder as needed. If you are using headphones or the volume level is not loud enough use the headphone output which has much higher output levels. Note: The RCA and headphone outputs are intended for connection to an amplifier or powered speakers and are not affected by the master volume level. Answer 2 The mixer output is overloading the speakers amplifier or other device connected to the mixer output. Lower the master volume or headphone volume and turn up the volume on the speakers or whatever device is connected to the mixer outputs. The mixer is producing a hum. How can I fix it? A low hum is likely caused by a ground loop or interference from electrical equipment nearby such as lights. Try disconnecting different devices and turning nearby devices off to see which one is causing the problem. Buying a ground loop isolator may help the p
