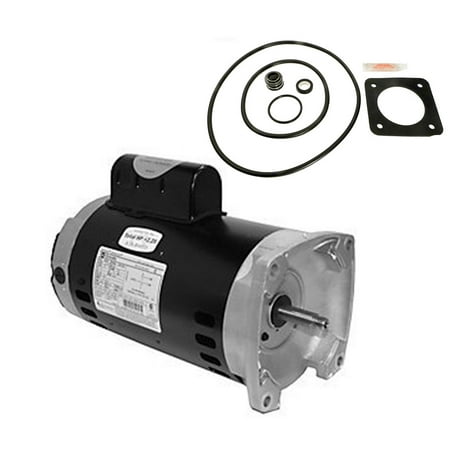

Puri Tech Replacement Motor Kit for Sta-Rite Max-E-Glas 2HP PEA6G-183L AO Smith USQ1202 w/ GO-KIT-54

Energy-efficient motors are a must if you don t want to spend much time maintaining the pools. The performance shortens run times and reduces energy consumption leading to lower operating costs. With this motor you don t have to compromise with performance and quality. Product Features: Stainless steel shaft for corrosion protection. New triple seal protection on pump end bearing. Voltage change device. Premium sealed 203 bearings both ends. Definitive shaft access (7/16 wrench). Open accessible terminal board and wiring compartment for easy installation. Pump motor has a threaded shaft that allows for convenient and direct mounting. Additional Features: Output HP: 2.20 HP. Frequency: 60 Hz. Current: 9.7 A. Service factor: 1. Output KW: 1.6 kW. Voltage: 230 V. Speed: 3450 rpm. Poles: 2. Phase: 1. Insulation class: F. Mounting: square flange. Drive end bearing: ball. Enclosure: open drip proof. Ambient temperature: 50°C. Frame: 48Y. Thermal protection: automatic. Motor orientation: horizontal. Electrical type: capacitor start capacitor run. Rotation: counter clockwise pump end. Dimensions: Shaft diameter: 0.625 . Shaft extension: 0.906 . Frame length: 10.13 . Material(s): stainless steel. Frame material: rolled steel

Energy-efficient motors are a must if you don t want to spend much time maintaining the pools. The performance shortens run times and reduces energy consumption leading to lower operating costs. With this motor you don t have to compromise with performance and quality. Product Features: Stainless steel shaft for corrosion protection. New triple seal protection on pump end bearing. Voltage change device. Premium sealed 203 bearings both ends. Definitive shaft access (7/16 wrench). Open accessible terminal board and wiring compartment for easy installation. Pump motor has a threaded shaft that allows for convenient and direct mounting. Additional Features: Output HP: 1.65 HP. Frequency: 60 Hz. Current: 9.4/18.8 A. Service factor: 1. Output KW: 1.2 kW. Voltage: 230/115 V. Speed: 3450 rpm. Poles: 2. Phase: 1. Insulation class: F. Mounting: square flange. Drive end bearing: ball. Enclosure: open drip proof. Ambient temperature: 50°C. Frame: 48Y. Thermal protection: automatic. Motor orientation: horizontal. Electrical type: capacitor start induction run. Rotation: counter clockwise pump end. Dimensions: 10 H x 9.5 W x 16 L. Shaft diameter: 0.625 . Shaft extension: 0.906 . Frame length: 10.13 . Material(s): stainless steel. Frame material: rolled steel
