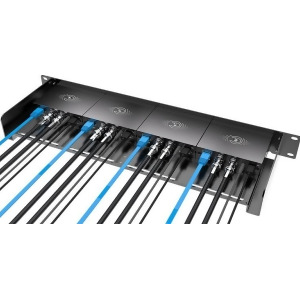

Switchcraft Sw-mmvpd48k175t 2 x 48 1Ru Microsize 12G 4K-8k Video Patchbay Panel - Full Normal to Din 1.0-2.3 - Terminated - All
Product information for Switchcraft Sw-mmvpd48k175t 2 x 48 1Ru Microsize 12G 4K-8k Video Patchbay Panel - Full Normal to Din 1.0-2.3 - Terminated - All
The Switchcraft Ultra VideoPatch line is a full line of 4K,8K UHD video patching solutions: Mid-Size/Mini-WECO single jacks, 2x48 1RU patch bay, patch cables, and accessories. This innovative product line meets and exceeds SMTPE ST 2081-1 and ST 2082-1 with low return loss, 75 ohm impedance and life cycle of 30,000. Passing quality signals for 4K, 8K and Beyond. Features1RU, 2X48 MicroSize 12G 4K/8K Video PatchbayFull Normal No Looping Plug Micro Video Plug to UHD DIN 1.0/2.3SpecificationsElectrical: Meets SMPTE 2082-1Characteristic Impedance: 75 OhmsContact Resistance: Less Than 50 MilliohmsMating Plug: 0.175 Outside DiameterCenter Conductor: Accepts 0.029 Pin Diameter<Vibration: Per Mil - Std 202, Method 201Insertion Force: 9 Lbs MaxWithdrawal Force: 2 Lbs MinLife Cycle: 20,000 MINOperating Temperature: -40degF to 149degFStorage Temperature: -40degF to 149degFThermal Shock: Per Mil-Std- 202, Method 107Moisture And Humidity: Per Mil-Std- 202, Method 106Salt Spray: Per Mil-Std- 202, Method 101Weight: 5 lbs
