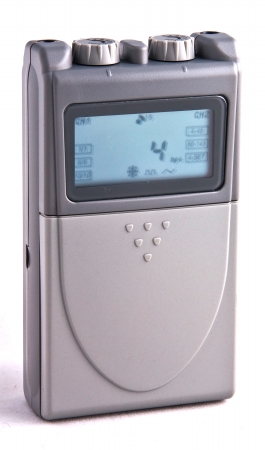

This type of stimulation is characterized by the crossing of two electrical medium, independent frequencies that work together to effectively stimulate large impulse fibers. These frequencies interfere with the transmission of pain messages at the spinal cord level. Because of the frequency, the Interferential wave meets low impedance when crossing the skin to enter the underlying tissue. This deep tissue penetration can be adjusted to stimulate parasympathetic nerve fibers for increased blood flow. Interferential Stimulation differs from TENS because it allows a deeper penetration of the tissue with more comfort (compliance) and increased circulation.

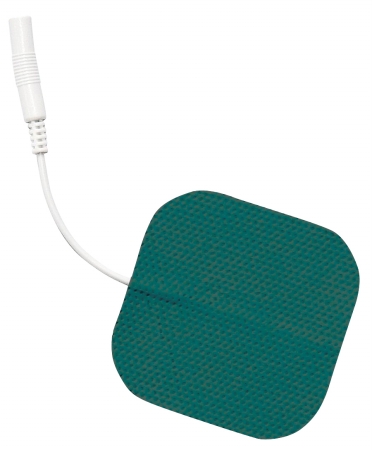

Features- Includes - Device, batteries, lead wires, 1-4pack of electrodes, carrying case and users manual.
- Crossing of two electrical medium, independent frequencies.
- Stimulate large impulse fibers.
- Interferential wave meets low impedance
- Deep tissue penetration can be adjusted
- Stimulate parasympathetic nerve fibers for increased blood flow
- More comfort (compliance) and increased circulation.
- Belt clip
- Carrier Frequency - 4000Hz. fixed
- Interference Frequency - 4004 - 4160 Hz.
- Difference Frequency - 4 - 160 Hz., adjustable
- Output Voltage - 0 - 60mA (or 0 - 30V) (through 500 ohms)
- Waveform - Symmetrical balanced Sine wave
- Pulse Width - 125 Microseconds for each phase
- Four Frequency Shift - Continuous, 1/1 abrupt, 6/6 ramped and 6/6 abrupt, 10/10 ramped and 10/10 abrupt
- Width (cms) - 9
- Length - 6 in.
IndicationMuscle soreness, Muscle stiffness, Arthritis, Body pain, Post-op pain, Post-traumatic acute pain and Chronic pain.
