SCP-122OFCHDBK 12-2OFC Direct Burial 2-Conductor 12 AWG Stranded Copper Indoor & Outdoor Speaker Cable - 500 ft. Black
Product information for SCP-122OFCHDBK 12-2OFC Direct Burial 2-Conductor 12 AWG Stranded Copper Indoor & Outdoor Speaker Cable - 500 ft. Black

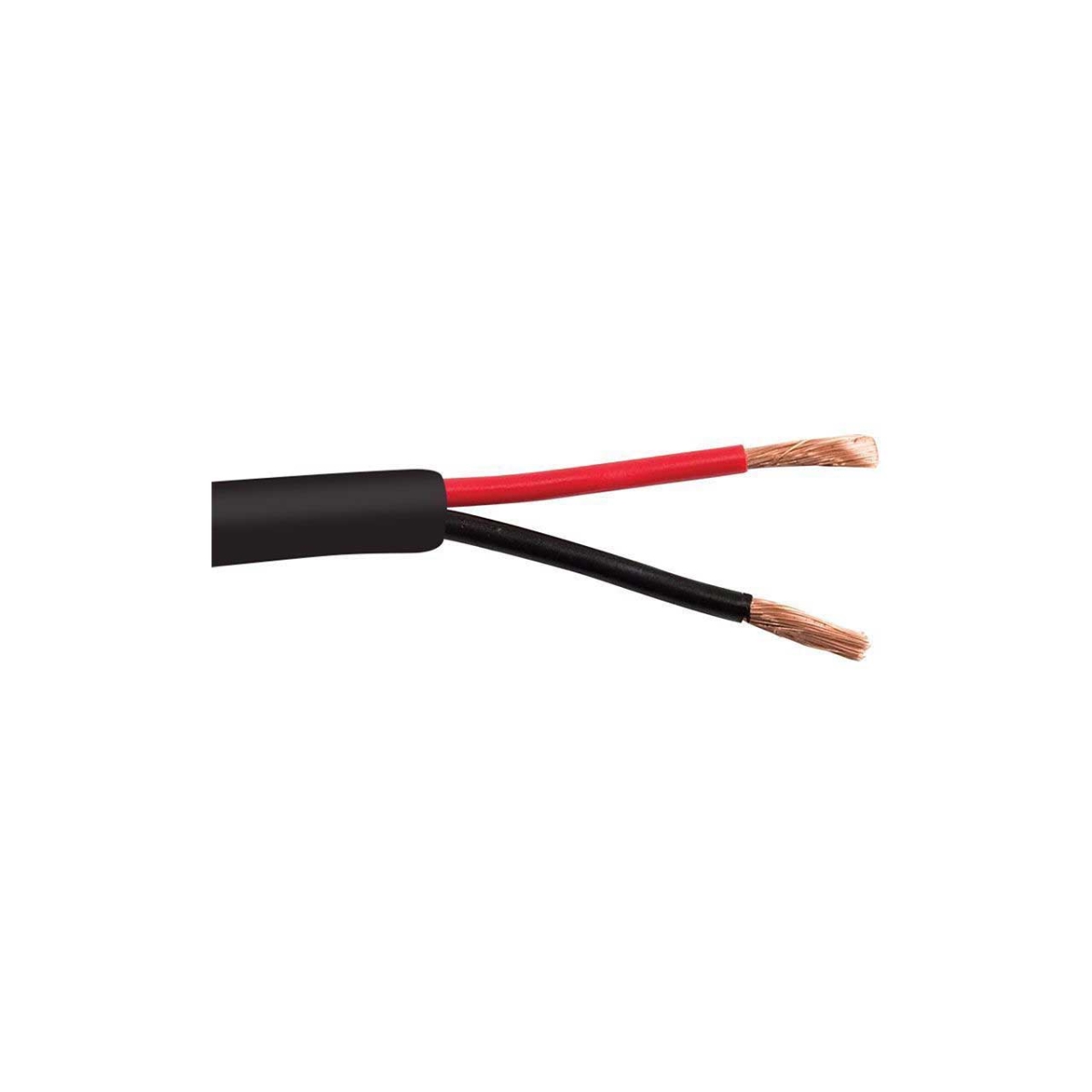

This cable consists of high strand count insulated oxygen free copper conductors in twisted pair construction (unshielded) with easy strip Heavy Duty Premium UV treated PVC jacket. Cable includes SCP Cable Labeling System with sequential foot/meter markings, and room/zone/outlet designations for easy cable identification.
Features- Highly Flexible
- Indoor/Outdoor Rated
- High Strand Count Oxygen Free Copper (OFC)
- Insulated twisted pair
- HD UV Sun Resistant PVC Jacket
- Easy Strip Round Rope Lay Construction
- SCP Tangle Free Reelex II Box
- Descending Feet and Zone/Outlet Jacket Markings
- Material: Stranded Bare Copper
- Size: 12AWG X 2C (3.28mm2)
- Construction: 65/0.254mm±0.004mm
- Resistance: Max 5.8w/km at 20 deg C
- Material: PVC
- Min. Thickness: 0.30mm
- Avg. Thickness: 0.36mm
- Diameter: 3.20mm±0.10mm
- Colors: Black and Red
- Resistance: Min 50Mwkm at 20 deg C
- Min. Thickness: 0.80mm
- Avg. Thickness: 0.95mm
- Diameter: 8.3mm±0.20mm
- Rip Cord: Nylon
- Bend Radius: Min 15D/125mm
- Operating Temperature Range: -20 deg C-+75 deg C
- Minimum Installation Temperature: 0 deg C-40 deg C
- Dielectric Strength: Min AC1.5KV
- Rated Voltage (Insulated/Operating): Max 300V/80V
- Test Voltage: 800V/min
- Impedance (nearby): 77±5w
- Capacitance (nearby) 20±3pf/ft
- Weight: 37.5 lbs
